Extend your range and increase your link robustness with this OrangeRx satellite receiver. This is the long antenna version making it ideal for larger models and for gliders with carbon fiber fuselages. The extra length of the antennae allow you to route them outside of the model.
OrangeRx satellites are built using original components, MCUs and with state of the art SMT automation to ensure a quality product each and every time. Every R110XL is manufactured using impedance matched PCBs with exact tuning to provide signal stability and range that exceeds any of the previous generation ORX products. In fact our testing has shown that the R110XL exceeds the range of other receivers in the same class.
All R110XL OrangeRx satellites are QC tested using our latest method that ensures range checking takes place as the receiver is programmed. Simply put, if the R110XL cannot pass the range check it cannot be programmed, this ensures 100% of R110XL's are guaranteed to work flawlessly.
The R110XL ushers in a new era of quality, reliability and performance for the OrangeRX line up.
This satellite features TRUE DIVERSITY technology. It is especially important for long range flights and in situations where you need more robust reception. It is also very useful in aircraft with carbon fiber frames where the antenna can be in the shadow of the airframe. If one of the antennae cannot receive a signal due to its orientation or airframe shadow, the satellite will use the other one and will still receive proper commands from the transmitter.
This satellite module has been tested and fully compatible with following equipment:
Receivers:
• Spektrum AR6210-x, AR8000-x, AR12120-x
• Orange 620x, 720x, 820x, 920x, 1020x, 1220x
• Spektrum and Orange telemetry modules
Flight Controllers:
• Naze32
• CC3D
• KK2
• MultiWii
• APM(2.0 and up)
Flybarless Controllers:
• V-Bar (and compatible)
• iKON
Specs:
Frequency: 2.4Ghz DSMX/DSM2 (compatible)
Size: 27x17x8mm
Weight: 3.5g (without lead)
Wire Length: 250mm
Antennae Length: 145mm
Warranty
12 Month replacement guarantee!
Included:

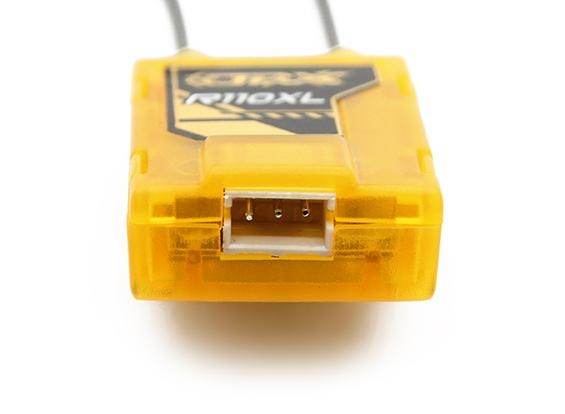

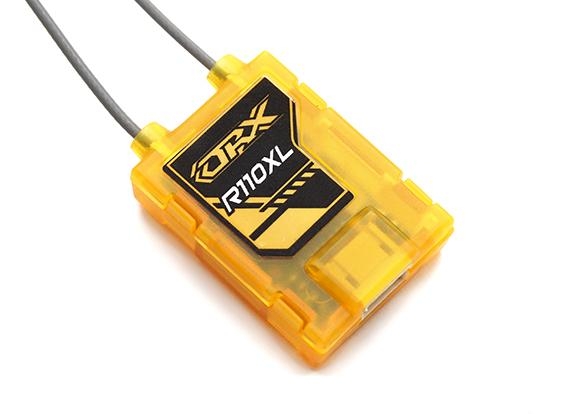

OrangeRx R110XL Satellite Receiver (long antenna)

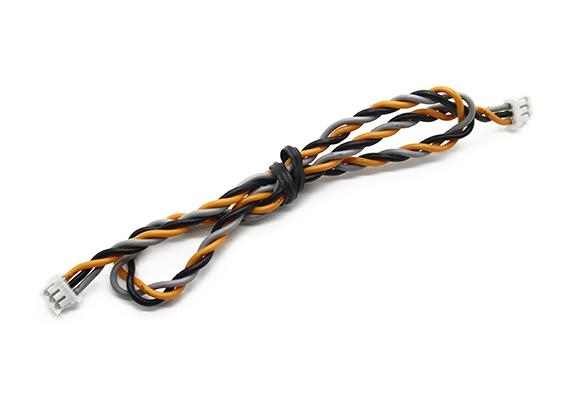

250mm Satellite extension lead
*Note:
1) This is not a Spektrum DSMX/DSM2 product, nor is it a copy of a Spektrum DSMX/DSM2 product.
The Spektrum and DSMX/DSM2 brand is a trademark of Horizon Hobbies USA.
2) This is not an underground black market fake Spektrum product. OrangeRx quality is guaranteed.
3) Accepted by the MAAA in Australia, see the MAAA MOP58 for guidance
