Here at Hobbyking™, we're excited to introduce the OrangeRX R620X to R1220X series of receivers.
Compatible with all DSM2/DSMX 2.4GHz air transmitters, the OrangeRx R620X to R1220X range of recievers takes things to the next level by offering CPPM or S.Bus output (dependent on model), true DSMX compatibility, integrated telemetry and utilizes dual antennae providing true signal reception diversity! Add to this programmable failsafe on binding, ultra-fast brown-out recovery and wide voltage input range. The end result being an unbeatable value for money aircraft receiver!
The all new CPPM and S.Bus functionality is an excellent feature for use with multi-rotor flight controllers such as the KK2.1, APM, MultiWii and others. These single line connections remove the weight and mess of additional wire leads for each individual channel. This is ideal for use on small frames where space is at a premium and keeps all wiring neat. Additionally, ALL receivers, from R620x to R1220x offer ALL 12 CHANNELS on either S.Bus or CPPM (dependent on model).
All receivers offer integrated telemetry providing readings for battery voltage, current, temperature and motor RPM. Using these receivers you can always monitor all critical parameters so you don't need to buy an additional telemetry module.
They have dual diversity antennas as well as two fully functional satellite ports to give unbeatable reception quality.
Flight testing has demonstrated stable results and solid reception for up to 750 meters and no control loss for up to 1km and shown that the OrangeRX R620X to R1220X exceed the range of other receivers in the same class.
OrangeRx receivers are built using original components, 32 bit MCUs and with state of the art SMT automation to ensure a quality product each and every time. Every single receiver is manufactured using impedance controlled PCBs with exact tuning to provide signal stability and range that exceeds any of the previous generation ORX products.
All OrangeRX R620X to R1220X receivers are QC tested using the most up to date methods and range checking takes place as the receiver is programmed. If any receiver cannot pass the range check at this stage of production it cannot be programmed, ensuring that 100% of the finished receivers are guaranteed to work flawlessly. In fact, all receivers are tested 3 times; during production, testing and final assembly.
The OrangeRX R620X to R1220X range ushers in a new era of quality, reliability and performance for the OrangeRX line up.
Features: (R1220X CPPM)
• Compatible with DSM2/DSMX 1024/2048 aircraft radio and module systems
• S.Bus output allowing for single line connection with compatible devices
• True diversity long antennas that can be placed in convenient locations in the aircraft
• Ultra-fast brownout recovery and programmed fail safe mode
• Wide input voltage: 3.7~9.6V
• 12 Channels PWM
• 12 channels CPPM
• Integrated telemetry for real time readings: Temperature, Voltage, Motor RPM, Current
If required, integrated telemetry can be disabled during binding.
Specs: (R1220X CPPM)
Channels: 12
Input voltage: 3.7~9.6V
Range:<1Km
Dimensions: 47 x 38.5 x 15.5mm
Weight: 18g
Included:

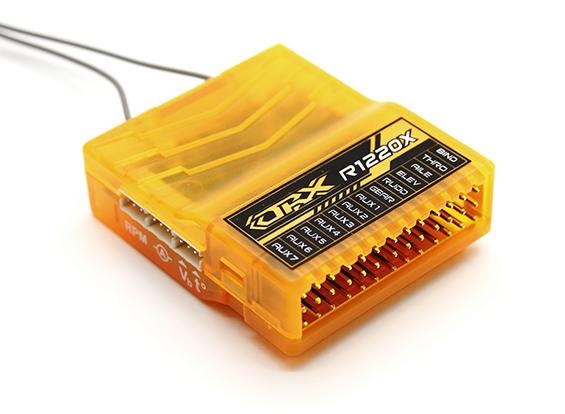

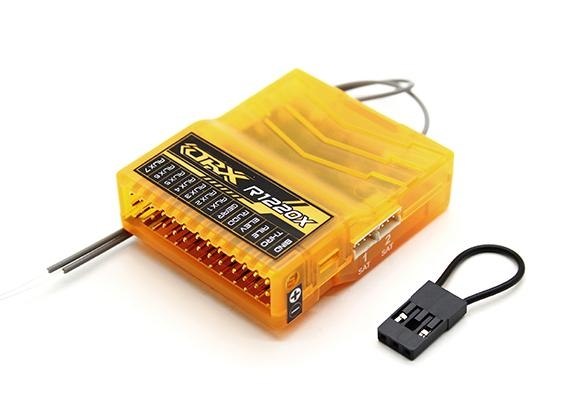

OrangeRx R1220X 12Ch 2.4 GHz DSM2/DSMX Full Range Receiver
Bind plug
Channel Output:
Chl 1 -Throttle
Chl 2 -Aileron
Chl 3 -Elevator
Chl 4 -Rudder
Chl 5 -Gear
Chl 6 -Aux1
Chl 7 -Aux2
Chl 8 -Aux3
Chl 9 -Aux4
Chl 10-Aux5
Chl 11-Aux6
Chl 12-Aux7
