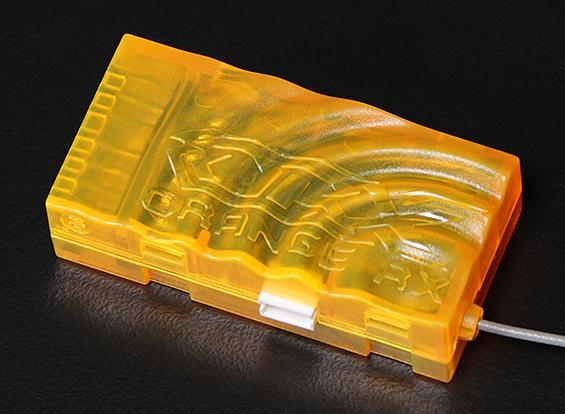

OrangeRx R620 full range receiver w/failsafe, S.BUS and satellite port ready.
The new range of OrangeRx R620 receivers are built using original components and MCUs, and with state of the art SMT automation to ensure a quality product each and every time.
All OrangeRx receivers are QC tested before leaving the factory.
The OrangeRx will work with ANY Aircraft Spektrum/JR DSM2 2.4Ghz transmitter.
The OrangeRx R620 is only 10.2g in weight and 46x23x13mm in size with case, Great for medium/small planes & helis, right up to large scale models.
Features:
• Super light weight at just 10.2 grams with case.
• Compatible with DSM2 1024/2048 aircraft radio and module systems.
• Full range operation
• 6 Channels
• Compact design
• Single 140mm antenna for mounting in almost any location.
• 1 Satellite port included.
• Input voltage: 3.7~7.0V.
• 1 Port S.BUS OUT (uses BATT/BIND port) - Works with S.BUS servos and GY750.
• Failsafe: All channels to bind position at signal loss.
Specification:
Channels: 6
Input voltage: 3.7~7.0V
Size: 46x23x13mm with case
Weight: 10.2g with case
Warranty:
12 Month replacement guarantee!
Includes:

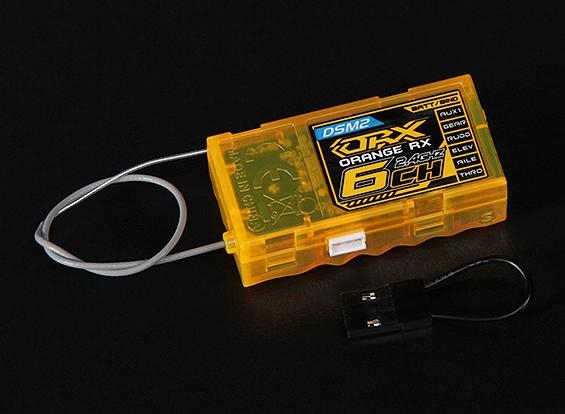

OrangeRx R620 DSM2 Compatible receiver
1 x Bind plug
NOTE:
1) Accepted by the MAAA in Australia, see the MAAA MOP58 for guidance
2) This is not a Spektrum module, nor is it a copy of a Spektrum module.
The Spektrum brand is a trademark of Horizon Hobbies USA.
3) Price of this module may fluctuate (up or down) due to cost of electronic components.
4) This is not an underground manufactured fake Spektrum module. OrangeRx quality is guaranteed.
Visit www.orangerx.com for news and updates on OrangeRx products.
