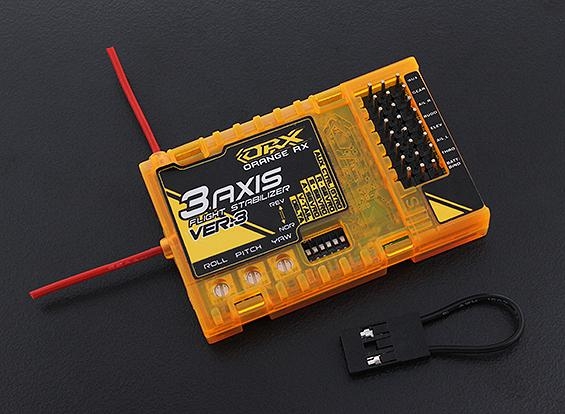

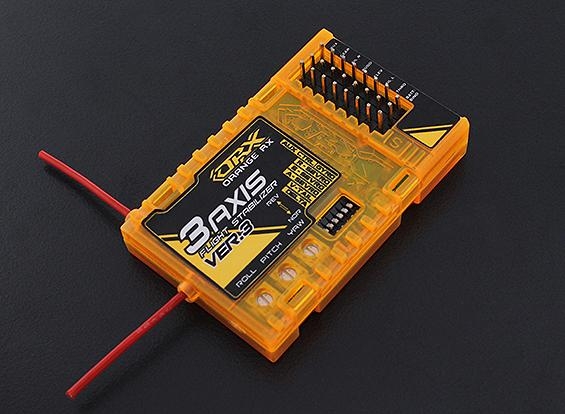

The all new RX3S Flight Stabilizer adds on the original V2 design with integrated OrangeRX Spektrum/JR DSM2 compatible 6CH 2.4Ghz receiver. This eliminates the need for using a separate receiver in your model, not only making installation more tidy and convenient, but allowing you to simply bind and fly with flight stabilization! The RX3S DSM2 stabilizer provides support for V-tail & Delta models, and also offers a remote ON/OFF feature that can be controlled via your transmitter's AUX channel.
Utilizing a single high precision 3-axis MEMS gyro, the RX3S DSM2 stabilizer is capable of stabilizing flight on just about any fixed wing aircraft! It provides added stability by automatically correcting the aileron, elevator and rudder channels in flight. This compensates for unwanted changes in the airplane's attitude due to wind and other factors. In short, it makes your airplane much more stable in flight!
The RX3S DSM2 stabilizer is great for those who tend to fly in windy conditions, as it will compensate for wind gusts that would normally push your model around. It's also an ideal add-on to your favorite FPV model to keep it on the straight and level while flying.
This unit is very simple to install and use. The adjustable gain settings are pre-set to 50% offering mild stabilization. You can easily adjust the gain for each channel as desired to increase or decrease the compensation for the respective channel (AIL, ELE, RUD).
Because we design, test and manufacture these units completely in-house (from 3D/2D drawing to materials sourcing, final assembly etc.) we can completely control production and ensure product consistency from design right through to shipping the product to you. Also, the removal of middle-men has meant we can drive better value to the market and retail these units at factory(our) prices!
Features:
• OrangeRX Spektrum/JR DSM2 compatible 6CH 2.4Ghz integrated receiver, simply bind and fly!
• Capable of stabilizing flight on just about any fixed wing aircraft (including V-tail/Delta models)
• Remote ON/OFF feature that can be controlled via your transmitter's AUX channel
• Supports 3D flight without undermining stability
• Independent gyro gain adjustment for aileron, elevator and rudder
• Easy-to-access gyro reversing switches on front of unit
• Compact and light weight design
Specs:
Integrated Receiver: OrangeRX DSM2 compatible 6CH 2.4Ghz
IC: Atmega168PA
Gyro: 3-Axis MEMS
Input Voltage: 4.8-6.0V
Signal to Servo: 1520us
Size: 53x34x14mm
Weight: 15g
*Note: User manual available for download located under the "Files" tab below
