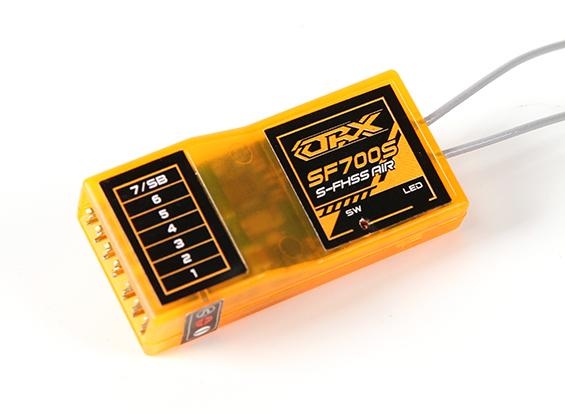

The OrangeRx SF700S has all the properties and features of the original FASST compatible receivers in the OrangeRx brand but this one now operates on the later Futaba FHSS (Frequency Hopping Spread Spectrum) system. This receiver has 2 operating modes, Mode A gives the standard 7ch operation, Mode B gives CH1 to CH6 as standard and CH7 is SBus.
The S.Bus functionality is an excellent feature for use with multi-rotor flight controllers such as the KK2.1, APM, MultiWii and others. These single line connections remove the weight and mess of additional wire leads for each individual channel. This is ideal for use on small frames where space is at a premium and keeps all the wiring neat and tidy. SBus is also perfect for large models and gliders that utilize a lot of servos, especially in the wings, once again it reduces the amount of wiring and keeps things tidy.
The receiver will also accept a wide range of input voltages from 3.5~8.4V which is great if you want to use LV and HV type servos.
Compatible with the following Futaba FHSS 2.4Ghz air systems: 4YF, 6J, 8J and 10J.
Features:
• Lightweight (9g)
• Compatible with FHSS 2.4Ghz air systems
• 7 channels
• 2 Output modes, Mode A and Mode B
• Supports SBus
• Compact design (45 x 21.5 x 11mm)
• Failsafe and battery failsafe
• Extremely low latency
• Fast frame rates
• Hops from frequency to frequency in a pseudorandom sequence
• Advanced algorithms create a secure frequency
Specs:
Type: SF700S
Input Voltage: 3.5~8.4V
Battery Failsafe Voltage: 3.8V
Dimensions: 45 x 21.5 x 11mm
Weight: 9g
Note:
All OrangeRx receivers come with a 12 month warranty. This is not a Futaba receiver, nor is it a copy of a Futaba receiver. Futaba, FASST and FHSS are trademarks of Futaba Co (JP).
See under "Files" tab for user manual.
