eli-Powermotor O.S. MAX 105HZ
- 90er- Heli Klasse (650-750)
- Triebwerk hat einen Hubraum von 17,17 Kubikzentimetern
- Gewicht von 596 Gramm
- Leistung von knapp 3,8 PS
Technische Daten:
- Abst.-Bef.-Löcher längs [mm]: 25 / Abst.-Bef.-Löcher quer [mm]: 52
- Bef.-Loch Ř [mm]: 4,2 / Bohrung [mm]: 29
- Breite [mm]: 61
- Drehzahlbereich ca.: 2000 – 16500

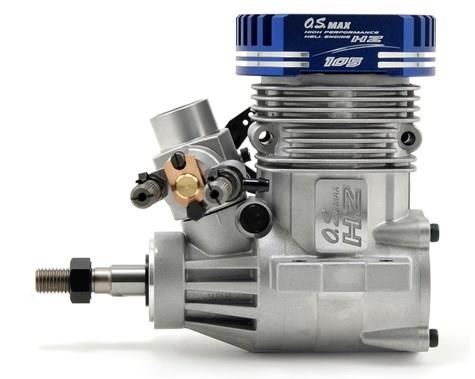

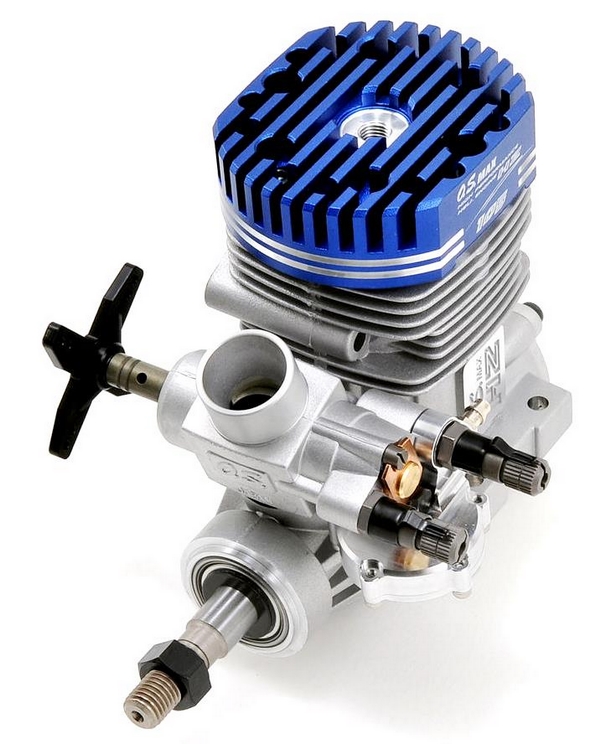

This is the O.S. Max 105 HZ Helicopter Engine. This is the engine precision aerobatic and 3D heli pilots have been waiting for! In order for 90-sized machines to nail huge maneuvers and hardcore, smackdown-style 3D it's all about power, and the 105HZ has it in abundance. Displacement has been increased by 15%, while a huge venturi rams air into the carburetor, producing massive power. Plus, they fit in a .90-sized mounting pattern.
Features:
Featuring the displacement of a 1.05 in the mounting space of a .90.
More displacement means more power, and these engines boost displacement by 15%!
A huge venturi boosts output even further.
The machined, blue anodized heatsink head is light in weight, and cools the engine efficiently.
Specifications:
Displacement: 1.048 cu in (17.17cc)
Bore: 1.442 in (29mm)
Stroke: 1.024 in (26mm)
Practical RPM: 2,000-16,500
Output: 3.75 hp @ 15,000 rpm
105HZ Weight: 21.03 oz (596g)
