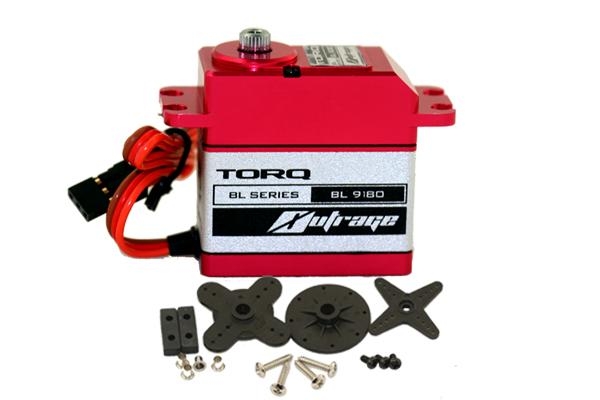

Outrage BL 9180 High Voltage Brushless Digital Cyclic Servo

Outrage TORQ Servos - When Good Just Isn't Enough.

Enter the all New BL9180 Brushless High Voltage Servo - one of the most advanced servos on the market today. If you are a pilot demanding the fastest in response time, combined with high torque, look no further than the Outrage TORQ BL9180.

The utilization of a brushless motor (compared to long used brushed motors in many other servos) ensures the ultimate in reliability with lighning fast response times, and smooth operation & vibration resistance. Adding to this, the gear train is titanium coated for strength and durability, allowing the servos to be pushed harder & faster in all regimes of 3D flight.

Gut wrenching torque is what Outrage had in mind when the BL9180 was being developed, as flybarless technology in helicopters up to .90 in size require tremendous amounts of torque for the best performance in flight. Simply put, if you are in need of maximum torque,the BL9180 will deliver gobs of it at 8.4V - 245.68 oz in., to be brutally exact.

Featuring Helical Gears in the first two gears of the servo, this Helical Gear setup allows for less slop and greater power transfer down the gear train, which improves centering and overall functionality. Simply put, your servos center better, holding your helicopter exactly where it should be throughout every crucial maneuver.

With brushless power, titanium coated gears and a helical gear set, the TORQ servos are built within a CNC machined aluminum case for maximum strength & durability. Anodized in a beautiful red case with laser etching, Outrage TORQ servos not only perform amazingly well, but look the part within your helicopter. Perfomance like this is simply hard to miss, and Outrage makes it easy for your competition to see what you have in store at the flight line.

The BL9188 Tail Servo and BL9180 Cyclic Servo are designed from the outset to function on 5.2 volts, all the way up to 8.4 volts (unregulated 2S Lithium Polymer Batteries). This High Voltage setup allows a very light and compact installation with no regulator needed - simply plug in your 7.4V LiPo receiver battery, and these High Voltage servos are ready to perform ast their maximum limit.

Features:

• Ultra High Speed / Ultra High Torque

• Designed from the outset for Unregulated 2S LiPo Compatibility
• Brushless Motor and Digital Controller for Unmatched Power & Reliability
• Standard 1500 Micro Second Center Pulse
• Full CNC Machined Aluminum Case Anodized in Red w/ Laser Etched Logo's

• Titanium Coated Gears for Maximum Strength & Durability

• (2) Helical Cut Gears for Slop-Free Power Transfer
• Dual Ball Bearing Output Shaft



Specifications:
