Outrage BL 9188 High Voltage Brushless Digital Tail Servo

Outrage TORQ Servos - When Good Just Isn't Enough.

Enter the world of the all new Outrage TORQ BL9188 Brushless High Voltage Servo - one of the most advanced servos on the market today. If you are a pilot demanding the fastest in response time, combined with high torque, look no further than the Outrage TORQ BL9188.

The utilization of a brushless motor (compared to long used brushed motors in many other servos) ensures the ultimate in reliability with lighning fast response times, and smooth operation & vibration resistance. Adding to this, the gear train is titanium coated for strength and durability, allowing the servos to be pushed harder & faster in all regimes of 3D flight.

Featuring Helical Gears in the first two gears of the servo, this Helical Gear setup allows for less slop and greater power transfer down the gear train, which improves centering and overall functionality. Simply put, your servos center better, holding your helicopter exactly where it should be throughout every crucial maneuver.

With brushless power, titanium coated gears and a helical gear set, the TORQ servos are built within a CNC machined aluminum case for maximum strength & durability. Anodized in a beautiful red case with laser etching, Outrage TORQ servos not only perform amazingly well, but look the part within your helicopter. Perfomance like this is simply hard to miss, and Outrage makes it easy for your competition to see what you have in store at the flight line.

The BL9188 Tail Servo and BL9180 Cyclic Servo are designed from the outset to function on 5.2 volts, all the way up to 8.4 volts (unregulated 2S Lithium Polymer Batteries). This High Voltage setup allows a very light and compact installation with no regulator needed - simply plug in your 7.4V LiPo receiver battery, and these High Voltage servos are ready to perform at their maximum limit.

The BL9188 utilizes a center pulse width of 760 micro seconds, which ensures compatibility with today's top end gyros, allowing super fast response times with absolute precision - all of this while still recording amazing torque values of greater than 91 oz. in. at 8.4 volts.

Features:

• Ultra High Speed / High Torque Tail Servo
• Designed from the outset for Unregulated 2S 7.4V Lipo Compatibility
• Brushless Motor and Digital Controller for Unmatched Reliability
• 760 micro second center pulse
• Full CNC Aluminum Machined Case Anodized in Red

• Titanium Coated Gears for Strength, Precision & Durability

• (2) Helical Cut Gears for Slop-Free Power Transfer
• Dual Ball Bearing Output Shaft

Specifications:

Package Includes:

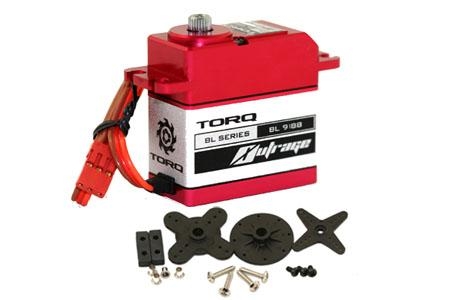

(1) Outrage Brushless Digital Servo with Servo Horns (Futaba Splined)

NOTE: This servo is a dedicated tail servo only and will not function as a throttle servo, or when plugged directly into a receiver. Servo is designed to work at a specific pulse rate that the tail gyro sends.

For Align GP780 Users: In order to place the GP780 gyro into 760µs frame rate, the rudder stick must be moved (3) times to the right. If only moving it once, it "does" turn the light red (indicating 760µs frame rate) but as soon as you exit the setup it goes back to 1520µs frame rate. Be sure the rudder stick is moved (3) times to enter proper setup for the correct frame rate.
