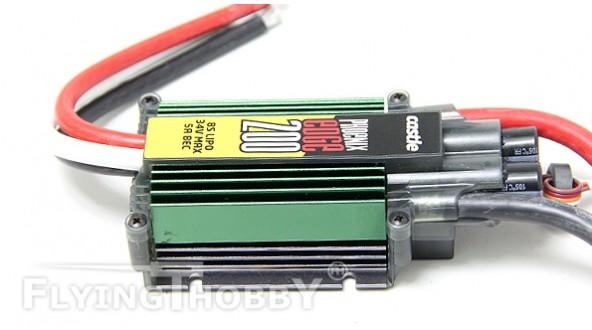

Phoenix EDGE 200 (34V 200 AMP) Brushless ESC W/5A BEC

Name: Phoenix EDGE 200 (34V 200 AMP) Brushless ESC W/5A BEC
SKU: CC-010-0098-00
Price: 259.99 EUR
Availability: InStock

Cod. CC-010-0098-00

Details

Product description

Applications
Helis:	N/A
Fixed wing:	N/A
Technical Specs
Input voltage:	MIN: 2S LiPo MAX: 8S LiPo
Max continuous amperage at full throttle:	200 amps*
BEC voltage (voltage regulator for powering radio and sevos):	User selectable choice from 5 to 8.4 volt output
BEC output amperage:	5 amp peak**
Size and Weight
Width:	2.0" (50.8mm)
Length:	4.3" (108.4mm)
Height:	1.2" (31.5mm)
Weight w/wires:	8.8 oz (249.6g)
Weight w/o wires:	5.2 oz (148.6g)
Miscellaneous
Programmability:	Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link USB adapter included in package) and freely downloadable Castle Link Windows software. Castle Field Link Programming Card (sold separately) compatible for select functions.
Connectors:	Battery and motor connectors sold separately
Tools needed for installation:	Soldering iron and solder to attach bullets to motor wires and battery connector to power wires
