Phoenix Ice2 HV controllers incorporate the latest components, providing you with the reliability you expect from Castle Creations. All Ice controllers are ready to fly out of the bag, but users can tap into serious programming capabilities by connecting them to Castle Link software using a Castle Link or Field Link programming card
- Phoenix Ice2 HV controllers offer the most comprehensive heli feature set in the industry; including direct entry governor mode, auto-rotation with bailout, and soft start capabilities to protect your gearing (see the screenshot on the right for more details).
- Opto isolated throttle cable helps reduce radio interference.
- Full data logging capabilities. Measure amp draw, controller temperature, motor rpms, battery voltage and ripple and more. Take the mystery out of electric flight!
We now offer Quick Connect for more convenient data log downloading and adjusting controller settings. Quick Connect is a special harness that allows you to keep the speed controller plugged into the receiver when connecting to the Castle Link. It has an extra 12" servo lead that can be placed wherever it is convenient to plug in the link, while your speed controller stays connected to the receiver. No more digging into your setup to get to the receiver just to pull off your data or change settings!
FEATURES: Recommended for helicopters and sport aircraft No BEC, external battery required to power receiver and servos Onboard Data Logging Castle Link compatible Opto isolated throttle lead Programmable brake Handles up to 12S LiPo (50V) maximum input One year limited warranty beginning at date of purchase

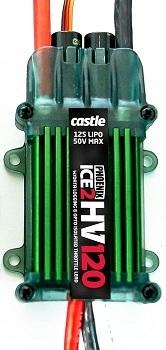

INCLUDES: Phoenix Ice2 Heavy Duty 120A VS2 Electronic Speed Control w/universal receiver connector, pre-tinned motor and battery leads and instruction manual
REQUIRES: Installation between motor, battery and receiver
SPECS:
- Length: 3.11" (79mm) with capacitors
- Width: 1.4" (35.5mm)
- Height: 1" (25.4mm)
- Weight: 6oz (170g) with wires 3.8oz (107.5g) without wires
- Max Amps: 120A (rating determined with a 5mph airflow on the ESC
- Max Volts: 50V (12S Lipo, 36S NiCd/NiMH)
- Battery Wire Length and Size: 7" (178mm), 8 AWG
- Motor Wire Length and Size: 5" (127mm), 10AWG
