Product Details
FEATURES: Recommended for enclosed installations in helicopter and sport
airplane applications where cooling is an issue
Heatsink equipped for efficient heat dissipation
Onboard Data Logging includes options such as Battery Voltage,
Battery Ripple, Battery Current, Controller Temperature, Throttle
Input, Motor Power Output and Motor RPM
Castle Link USB compatible, linking offers many advanced programming
options such as heli governing modes, control line governor
settings, motor timing, audible alert tones and incredible data
logging capabilities
Switching BEC
Handles up to 22 cells NiCd/NiMH, 8S (33.6V) LiPo
One year limited warranty through manufacturer from date of purchase

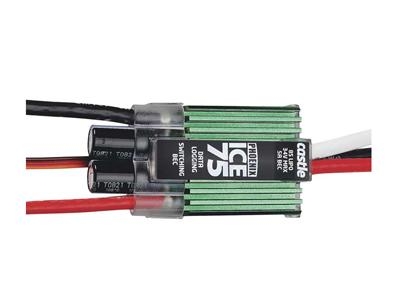

INCLUDES: Phoenix ICE 75 33.6V Electronic Speed Control with instruction sheet
REQUIRES: Motor and battery connectors of modeler's choice
SPECS: Length: 2.6" (66mm)
Width: 1.3" (33mm)
Height: 0.9" (22.9mm)
Weight: 2 oz (56.7 g)
Max Amps: 75 amp* 5 amp BEC
Max Volts: 34 volts
8S LiPo
22 cells NiCd/NiMH
Non disp.
