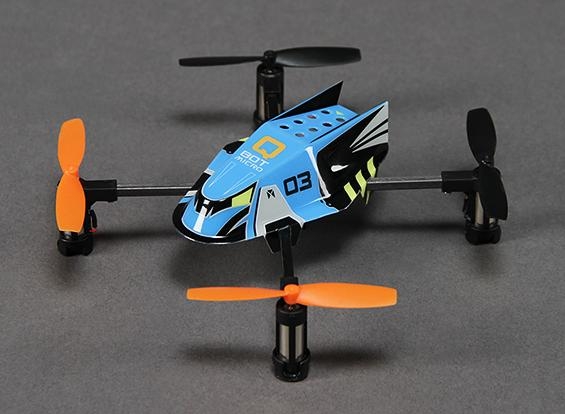

The Q-BOT Micro is the first micro quadcopter on the market today that includes a 2.4gHz RF module allowing it to be used with your own transmitter. This means it can be flown with Spektrum, JR, Futaba, Hitec, Turnigy, Walkera and other transmitters*. The transmitter will simply need to have a trainer port (JR style 3.5mm or Futaba style 6-pin) and be capable of outputting PPM signal.
This micro quad features leading edge technology including a highly precise 6-axis gyro stabilization system making it ultra stable. Normally, building and setting up of multi-rotor aircraft requires lots of time, tuning and having to choose your own power system/components. The Q-BOT Micro takes away all of the complicated setup and makes it as easy as opening the box, charging the batteries, connecting the RF module to your own transmitter and flying!
The included 2.4gHz RF module can be powered several different ways. It has its own rechargeable 3.7V lipoly battery pre-installed but can also be powered directly from the transmitter via the transmitter's charging jack (DC power plug included), or by the Futaba style 6-pin trainer port.
The Q-BOT Micro is very capable with plenty of power to spare. In normal mode, its stable flight characteristics make it stress-free for the less experienced quad pilot. Switch it to aerobatic mode (via your transmitter's GEAR channel) and it's very responsive for those looking to push it to the limits. When in aerobatic mode, the responsiveness is greatly increased which allows for flips, rolls and loops to be performed!
Features:
• 2.4gHz RF module allowing for use with your own transmitter*
• 6-axis gyro stabilization system
• Ultra stable flight characteristics
• Aerobatic flight mode allowing for flips, rolls and loops
• Compact and lightweight design
*Note: Your Transmitter must have a trainer port (JR style 3.5mm or Futaba style 6-pin) and be capable of outputting PPM signal.
Quadcopter Specs:
Width: 125mm
Height: 35mm
Weight: 26g (w/out battery)
RF Module Specs:
Battery Specification: 3.7V Li-Po battery 120mAh
Operating Voltage: 3.7~12V DC
Operating Current: ≤ 100 mA
Operating Frequency: 2.4gHz
Spread Spectrum Mode: FHSS
Number of Frequency Channels: 20
Hopping Rate: 240 Jump/s

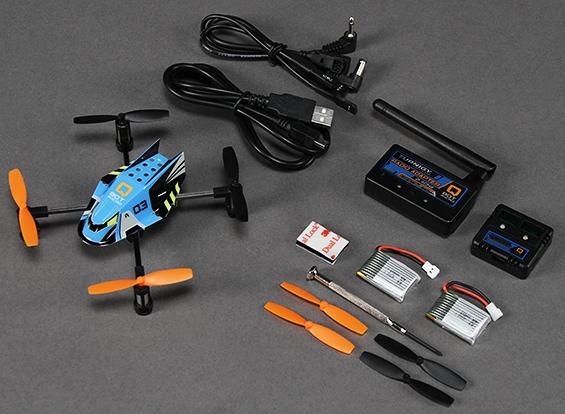

Included in box:
Q-BOT Micro Quadcopter
2.4gHz RF module
3.7V 20C 250mAh lipoly battery x 2
USB dual battery charger
Spare propellers (2 x black, 2 x orange)
Screwdriver
Required:
Your own 4CH (5CH or more required for aerobatic mode) transmitter with trainer port (JR style 3.5mm or Futaba style 6-pin)
*User manual available for download located under the "Files" tab below
