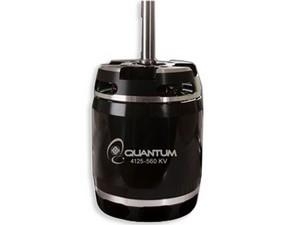

max. 3000 Watt, 6mm shaft, 340g, up to 12S Lipo perfect for TREX 600, Fusion 50...
Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight. Check out http://www.quantummotors.com for further information
Specifications:
| Stator Diameter | 40MM |
| Stator Thickness | 25MM |
| No. of Magnetic Poles | 8 |
| No. of Stator Arms | 12 |
| Motor Kv | 560 RPM/Volt |
| Max Continuous Current | 70 Amps |
| Max Continuous Power | 3000 Watts |
| Weight | 340 Grams |
| Overall Shaft Length | 92.85mm |
| No-Load Current (lo) | 1.2 Amps@10V |
| Motor Resistance (Rm) | 0.034 Ohms |
| Outside Diameter | 49.8MM |
| Shaft Diameter | 8MM to 6MM |
| Body Length | 55.7MM |
| Bearings | ABEC-3 Bearings (8x16x5) 688ZZ |
