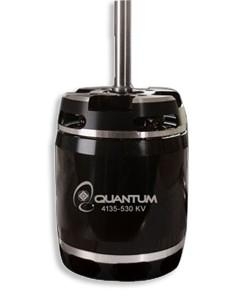

Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight. Check out http://www.quantummotors.com for further info.
Note:
Quantum 4135--is delta winding with 2strands 0.8mm wires
Quantum 4530--is delta winding with mutistrand wires
Specification:
| Stator Diameter | 40MM |
| Stator Thickness | 35MM |
| No. of Magnetic Poles | 10 |
| No. of Stator Arms | 12 |
| Motor Kv | 530 RPM/Volt |
| Max Continuous Current | 80 Amps |
| Max Continuous Power | 3500 Watts |
| Weight | 440 Grams |
| Overall Shaft Length | 107.85mm |
| No-Load Current (lo) | 2.5 Amps@10V |
| Motor Resistance (Rm) | 0.024 Ohms |
| Outside Diameter | 49.8MM |
| Shaft Diameter | 8MM to 6MM |
| Body Length | 65.7MM |
| Bearings | ABEC-3 Bearings (8x16x5) 688Z |
