perfect for Goblin 770 This is the motor of Choice for Bert Kammerer in his SAB Goblin 700.

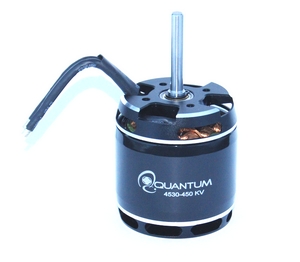

Quantum Outrunner Bruhsless Heli Motor (4530-500KV) Goblin QT-4530-450
Constructed with the utmost in quality with the very best in high performance materials, Quantum has altered the very DNA of brushless power, bringing forth a true quantum shift in all manners of RC power. Specified with high quality bearings, high strength steel, lightweight aluminum, and amazingly powerful neodymium rare earth magnets, Quantum motors are ready to alter the very dynamics of your everyday flight. Quantum brushless motors are deigned to change the way you fly; prepare to take hold of true brushless power that will open new realms of RC flight.
Product Note:
- Delta Winding w/ Multi Strand Wires
- Design to fit perfectly on Goblin 770
Specifications:
| Stator Diameter | 45MM |
| Stator Thickness | 30MM |
| No. of Magnetic Poles | 10 |
| No. of Stator Arms | 12 |
| Motor Kv | 450 RPM/Volt |
| Max Continuous Current | 125 Amps |
| Max Continuous Power | 5000 Watts |
| Weight | 556 Grams |
| Overall Shaft Length | 102.85mm |
| No-Load Current (lo) | 1.6 Amps@10V |
| Motor Resistance (Rm) | 0.013 Ohms |
| Outside Diameter | 56.8MM |
| Shaft Diameter | 8MM to 6MM |
| Body Length | 60.7MM |
| Bearings | ABEC-3 Bearings (8x16x5) 688ZZ |
