Quanum Chaotic 3D Quad (RTF) (Mode 2)

Quanum Chaotic 3D Quad (RTF) (Mode 2)

This is Chaotic. What a way to go with this extreme 3D flying quad. There is no telling what you can do with this quad from slow stable (well semi stable) flight to buzzing around upside down for 3D flying with flips and rolls thrown in just for fun of it.

It comes with all the great gear for flying out of the box. The Chaotic is completely fitted out with the Quanum Madcow flight controller driving 2212-1300kv motors, Afro 30A ESC's and big Gemfan 3D 8” propellers. Orange T-Six 2.4GHz Transmitter with ORX R415X Receiver. Electronics are covered in a vibrant polycarbonate shell for extra protection and easy orientation.

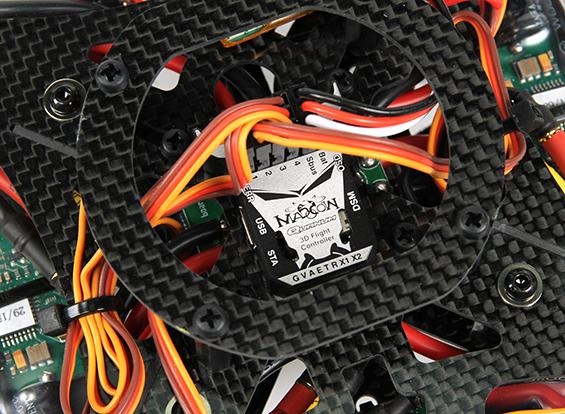

The Madcow flight controller comes preset with three flight modes.
Veal mode: (Stabilized mode) 0 – 100% of the throttle range corresponds to normal motor rotation only. In this mode the multi-rotor will maintain level balance automatically while roll and pitch are centered. The multi-rotor will not flip and roll and the angel of tilt is limited.
Grilling mode: (Acro Stabilized mode) 0% - 100% of the throttle range corresponds to normal motor rotation only. In this mode the multi-rotor will maintain level balance automatically while roll and pitch are centered. The multi-rotor will still flip and roll and the angle of tilt is not limited. This is often called “horizon” or “ratititude” mode but is not capable of inverted flight.
Madcow mode: (3D stabilized mode) 0% - 50% of the throttle range corresponds to reversed motor rotation, 50% - 100% range of the throttle corresponds to normal rotation. In this mode the multi-rotor will maintain level balance automatically while roll and pitch are centered. This is often called “horizon” or “ratittude” mode but with added reversing of motors for inverted flight.

3D flying - the Chaotic way to fly.

Features:
• Tough and light weight carbon fiber frame
• Large 400mm wheelbase
• Quanum Madcow flight controller for 3D flying
• Bi-directional 8” 3D carbon reinforced propellers
• Three stabilization modes – Veal (Stabilized), Grilling (Acro), Madcow (3D)
• OrangeRx T-Six 2.4GHz Transmitter with OrangeRX R415X Receiver

Specs:
Wheelbase: 400mm
Weight: 627g (without battery)
Motor: 2212 1300KV (DJI slot style shaft)
ESC: Afro ESC 30 Amp (SimonK firmware)
Flight Controller: Quanum Madcow 3D
Propellers: Gemfan Bi-directional 8in 3D Carbon Reinforced Propeller set CW/CCW Multirotor (DJI slot style)
Power distribution board: HobbyKing mini PDB with XT60 Connector
Transmitter: OrangeRx T-SIX 2.4GHz DSM 2 compatible 6CH Transmitter – Mode 2
Receiver: OrangeRx 415X

Included:
1 x Quanum Chaotic 3D Quad RTF
1 x Orange 2.4GHz Transmitter 6CH – Mode 2
1 x Manual
1 x Sticker set
1 x Velcro Tape
2 x Gemfan Bidirectional 8” Propellers (CW)
2 x Gemfan Bidirectional 8” Propellers (CCW)

Required:
4 x “AA” Batteries (for transmitter)
1 x Battery 4S 1800~2200mAh LiPoly pack
