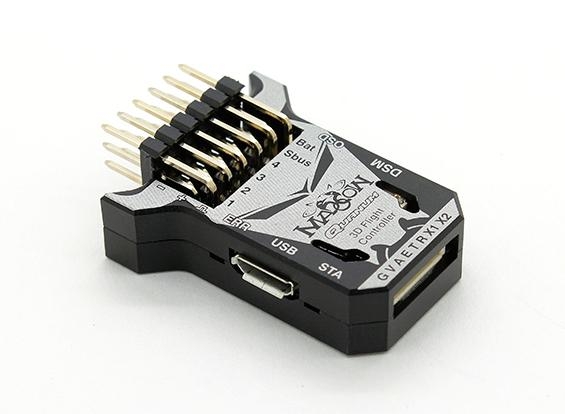

Quanum MADCOW 3D Multirotor Flight Controller

Quanum MADCOW 3D Multirotor Flight Controller

The Quanum MADCOW is an exciting 3D Flight Controller specifically designed for 3D multirotor flight and racing. 3D flight is the next generation of multirotor flying to add to your repertoire. The MADCOW FC makes it so easy to use and has superb performance. Utilizing a high speed STM32 Processor.

Get all your old tricks and perform them inverted. 3D is the way to push the flight envelope to even more extremes.

The Madcow flight controller comes preset with five flight modes.
1. Tipping Mode: (Acro mode) 0-100% of the throttle range corresponds to normal motor rotation only. In this mode the multirotor will not keep level balance automatically while roll and pitch are centered. Also known as “acro” or “manual” mode.
2. Grilling mode: (Acro Stabilized mode) 0% - 100% of the throttle range corresponds to normal motor rotation only. In this mode the multi-rotor will maintain level balance automatically while roll and pitch are centered. The multi-rotor will still flip and roll and the angle of tilt is not limited. This is often called “horizon” or “ratititude” mode but is not capable of inverted flight.
3. Veal mode: (Stabilized mode) 0 – 100% of the throttle range corresponds to normal motor rotation only. In this mode the multi-rotor will maintain level balance automatically while roll and pitch are centered. The multi-rotor will not flip and roll and the angel of tilt is limited. (This mode can function as a rescue mode, if you are flying 3D and lose orientation. Switching to this mode will quickly roll the mutirotor back to normal flight and keep balance)
4. Slaughterhouse Mode (3D Mode) 0% - 50% of the throttle range corresponds to reversed motor rotation, 50% - 100% range of the throttle corresponds to normal rotation. In this mode the multirotor will not keep level balance automatically while roll and pitch are centered. Also known as “acro” or “manual” mode but with the added reversing of motors for inverted flight.
5. Madcow mode: (3D stabilized mode) 0% - 50% of the throttle range corresponds to reversed motor rotation, 50% - 100% range of the throttle corresponds to normal rotation. In this mode the multi-rotor will maintain level balance automatically while roll and pitch are centered. This is often called “horizon” or “ratittude” mode but with added reversing of motors for inverted flight.

MADCOW is an excellent flight controller to explore the world of 3D flight.

Features:
• 3D Flight Controller
• Easy to use
• Superb performance
• High Speed STM32 F302 CCT6 Processor

Specs:
Processor: STM32 F302 CCT6
Core: Cortex – M4 with FPU
Size: 38.5x26.5x12.5mm (without cables)
Weight: 8.5g (without cables)

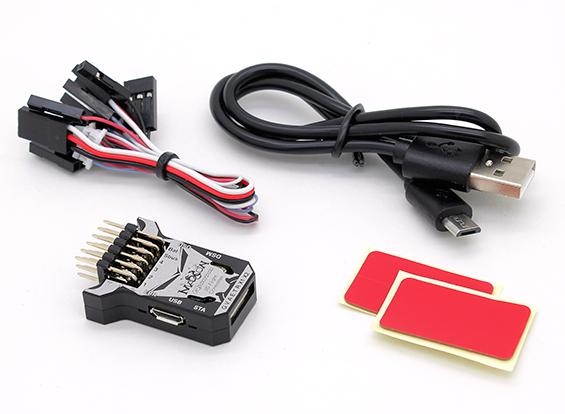

Includes:

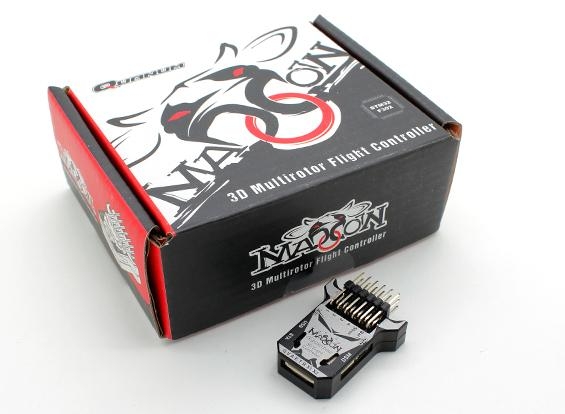

1 x Quanum MADCOW 3D flight controller
2 x Mounting stickers
1 x USB Cable
1 x Cable set

Note: Default setting is for the Quanum Chaotic 3D Quad with active braking and Oneshot125 ESC.
