Quanum Outlaw 180 Racing Drone (ARF)
Another excellent build in our Quanum Outlaw Racing Series. The Outlaw 180 comes pre-built so just add a receiver and battery and you are ready to go.

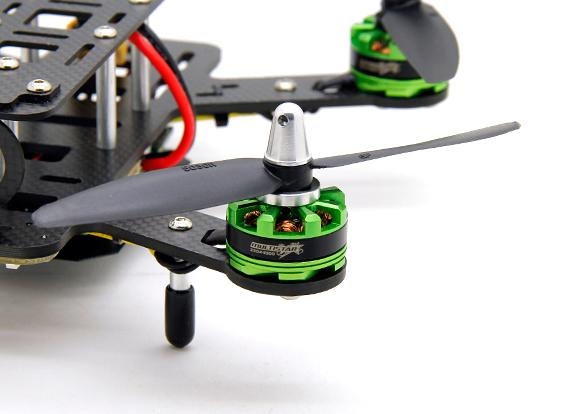

Power is provided to the Outlaw 180 by excellent Multistar 2204-2300 motors running 5” propellers. All electronics is provided on the same board this includes the 20A Afro Race Spec ESCs, CC3D flight controller (running Openpilot) and power distribution.

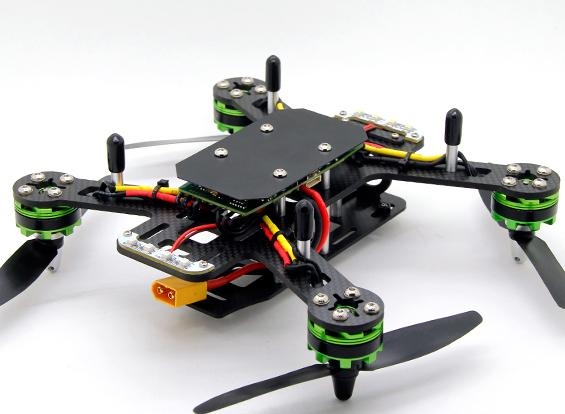

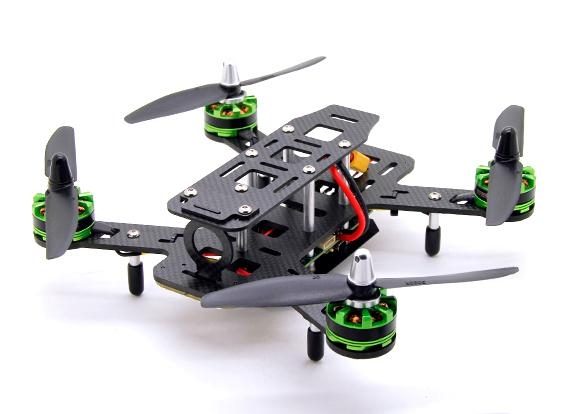

The Outlaw 180 comes with a strong 3mm one-piece carbon fiber lower deck. It would take a lot to inflict damage on this Outlaw. Above is a 1.5mm upper deck. Between decks there is huge open spaces for FPV camera, receiver and video transmitter. The FPV camera mount tilts for those high speed flights.
The Outlaw 180 is supplied complete with a full set of props, CW & CCW prop adapters and all fixtures and fittings. A set of lights show the posse where you are. This is a great pro level kit, all built and ready for the stampede.
Features:
• One-piece Carbon Fiber Bottom Frame (3mm)
• One-piece Carbon Fiber Top Frame (1.5mm)
• Lean back Carbon Fiber front camera mount
• CC3D Flight controller running Openpilot
• 20A Afro race spec speed controllers
• Powerful Multistar 2300Kv motors
• Uses 5" 5030 propellers
Specs:
Motor: Multistar 2204 2300Kv
ESC: 20A Afro Race Spec
Flight Controller: CC3D
Wheelbase: 200mm
Size: 160x182x54mm (without legs)
Includes:
1 x Quanum Outlaw 180 Racer
2 x CW 5" 5030 propellers
2 x CCW 5" 5030 propellers
1 x Receiver data cable
1 x Battery strap
4 X CW & CCW motor hubs
1 x Manual
Requires:
5~6ch control radio and receiver
1300~1800 3~4s battery
FPV gear optional
