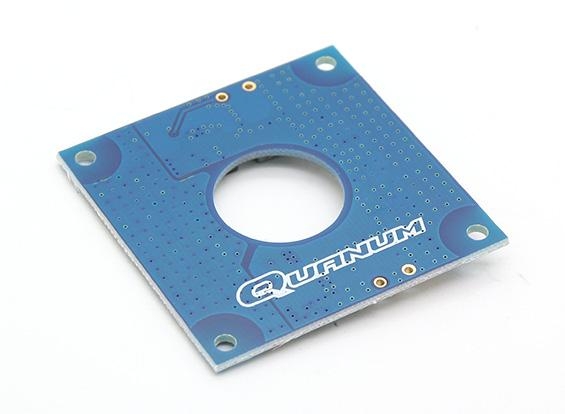

The Quanum power distribution board is a 3-in-1 device that simplifies even the most complicated multirotor builds.

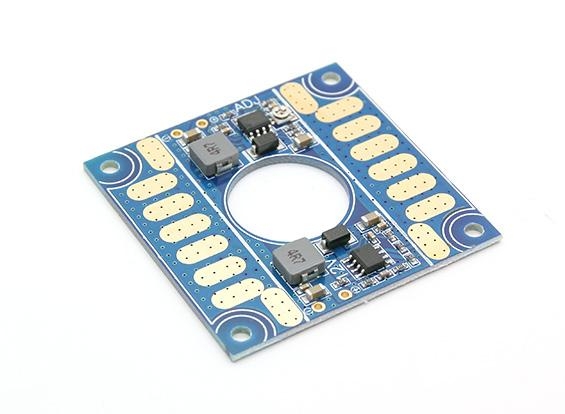

The PDB has two built in super clean 5A UBEC's one set at 12V for your FPV gear and the other adjustable from 3-20V perfect for powering your flight controller or other gear. The 2oz copper double sided PCB can handle 80A of power and the Ubec's can take up to a 6s. There are dual output pads for the Ubecs and 8 positive and 8 negative pads for the power distribution. The overall size is the standard 52mm with 45mm holes for drop in mounting to most multirotor frames.
Simplify and tidy your multirotor builds, well increasing reliability and decreasing weight with the new Quanum 3-in-1 power distribution board.
In Quanum you can trust !! Don't get caught using an inferior PDB, the Quanum PDB was spec built using 2oz copper giving a true 80A rating, not found on similar PDB elsewhere.
Specs:
Amps: 80A
Voltage: 6s
Size: 52x52x1.6mm
Weight: 11g
Mounting: 45x45mm holes square (3mm holes)
Ubec 1 output: 5A 12V
Ubec 2 output: 5A 3~20V adjustable
