Racewhoop30 FPV Racing Frame 3 Inches Quad by HGLRC & Free Zillion

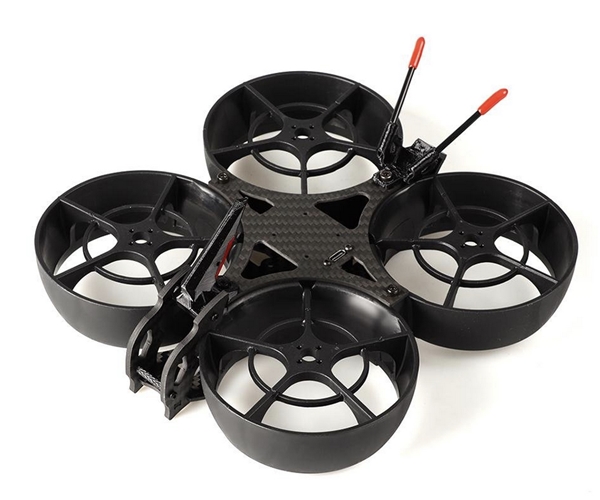

HGLRC Racewhoop30 FPV Racing Frame 3 Inches Quad

Feature:
*The Frame supports (20x20-25.5x25.5-30.5x30.5mm) installing holes;
*3 Inches Racewhoop frame, compact and fly anywhere you want;
*Fluorescent effect, 5 colors optional, ultra-high color value;
*Made of composite material, super explosion resistant;
*Racewhoop Structure design, strong and No damage to the the frame or the components.

Brand Name: HGLRC
Model: Racewhoop30 Frame
Material: 3K carbon fiber
Type:3 inches frame
Wheelbase: 147mm
Size:200*200mm
Top plate: 2mm
Bottom plate: 2mm
Space: 30mm
Flight control mounting hole: 20x20mm/25.5x25.5mm/30.5x30.5mm
Support camera:19*19mm
Weight: 152.2g

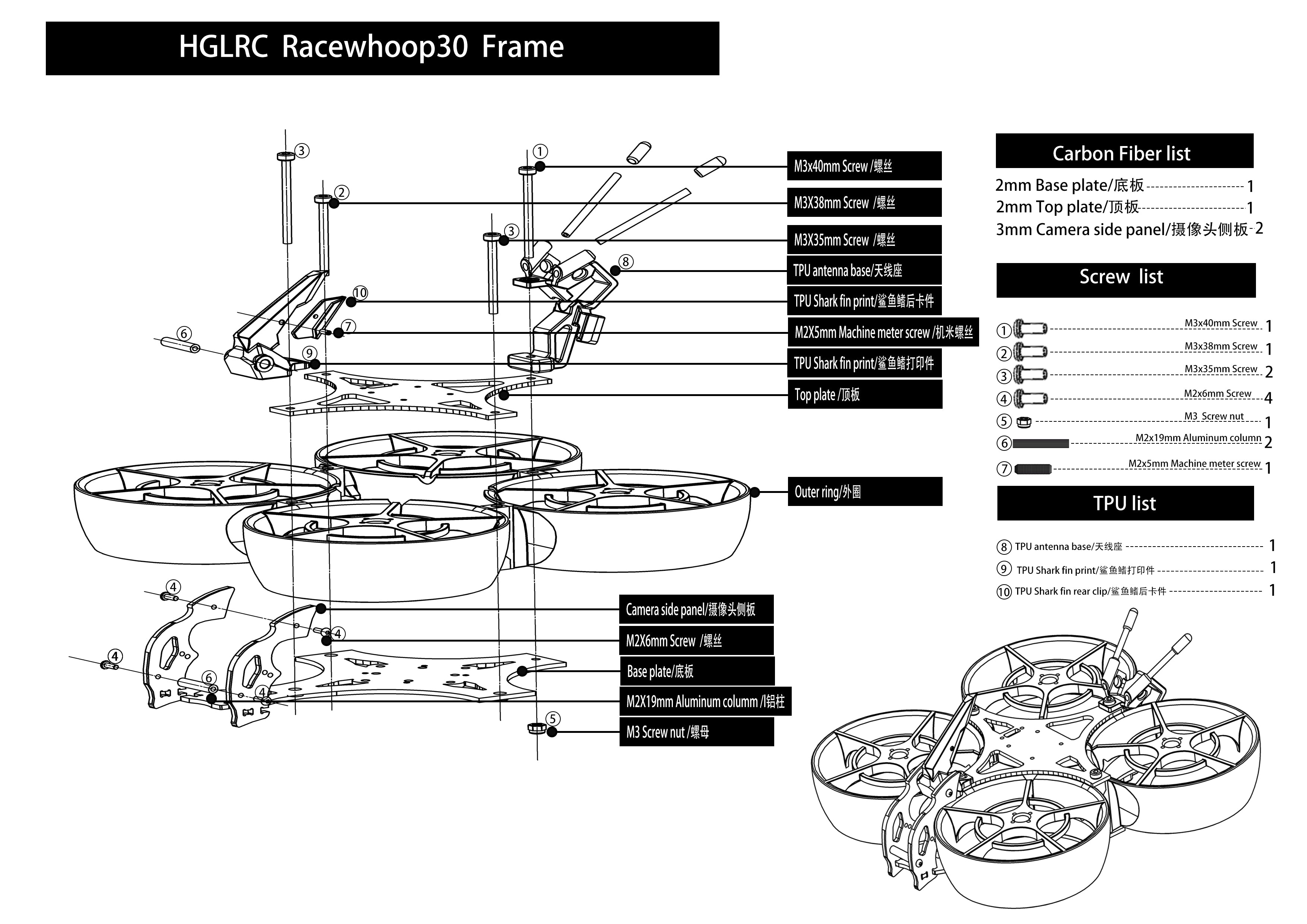

Package list:
1x 2mm top plate
1x 2mm bottom plate
2x 3mmSecure the camera side panel
4x Protection duct（The solid color version has 4 protection rings, and the same color /
macarone mixed color version is: macarone green, lemon yellow, cherry blossom powder and Roland violet protection rings）
1x 4P link cable(Double head ph1.0-6p)
1x Type C female
1x Type C male
1x Micro male
1x Cup head screw M3*40
1x Cup head screw M3*38
2x Cup head screws M3*35
4x round head screws M2*5
1x Hexagon socket M2*5 machine meter screw
2x M2*19 aluminum column
4x round head screws M2*6
4x Cup head screw M2*25
4x round head screws M3*25
6x M3 self-locking nuts
4x M2 self-locking nuts
2x M2 * 8 nylon column
1x M5 self-locking nuts
1x M5*20 flat round head countersunk head screw
4x M3*8 shock absorbing balls
4x M2*6.6 shock absorbing column
2x battery strap 20x200mm
1x LED color line（1 yellow 1 White 1 Black 1 red）
1x LED + buzzer
1x Battery skid pad
1x TPU shark fin print
1x TPU shark fin rear clip
1x TPU Gopro fixing seat
1x TPU antenna base
2x Receiver antenna tube
1x L-type 0.9mm Allen wrench

Recommended parts:(not included)
Flight control: Zeus25/F722 MINI
Motor: 20XX//21XX
ESC: Zeus25A-40A
Camera: 19X19mm
Propeller:3 inches
Battery: 4S 850mAh 1300mAh
