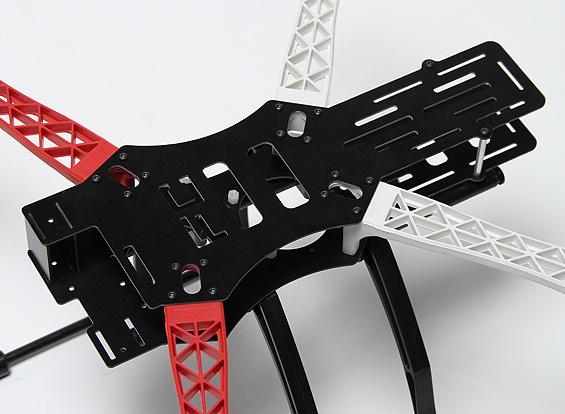

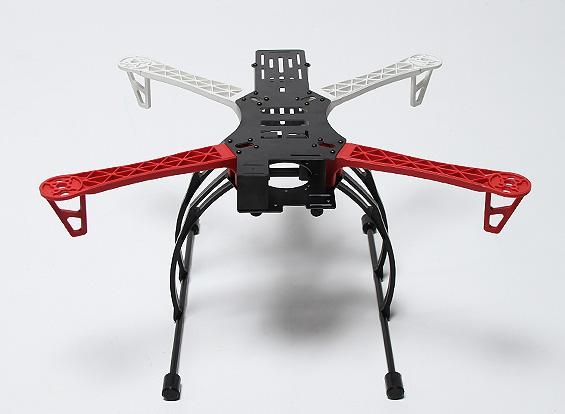

The Reptile500 V3 is a Super-sized and well thought out 500mm Spider style quad frame built from quality materials. The main frame is glass fiber while the arms are constructed from ultra-durable polyamide nylon. The “Spider Style” frame allows for a prop free view from a front mounted centerline fpv camera and proper battery location for balancing.

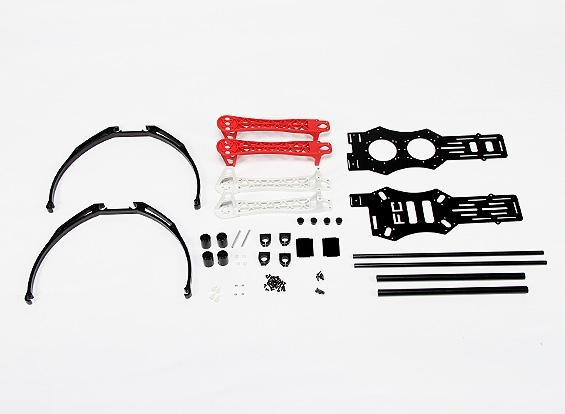

Assembly is a breeze with pre-threaded brass sleeves for all of the frame bolts, so no lock-nuts are required. A great feature of this frame is the large mounting tabs at the front and rear of the main frame bottom plate for mounting cameras or other accessories. This makes for a great way to take aerial video or fly FPV without the need to add any additional mounting brackets.
The Reptile also features colored arms (2 white and 2 red) which are great for orientation. It helps to keep you flying the right direction without the need for different colored props. The Reptile includes a hi-leg crab style landing gear set and a hook and rod mounting support. We offer a full line of multi-rotor electronics such as multi-rotor control board, ESC & motors. It has never been easier or more affordable to get a quad in the air!
Features:
• Prop free view with spider layout
• Built from quality glass fiber and polyamide nylon.
• Pre-threaded brass sleeves for all of the frame bolts.
• Colored arms for orientation to keep you flying in the right direction.
• Hi-leg Crab style landing gear
• Hook and rod Mounting options
• Large mounting tabs on the main frame bottom plate for easy camera mounting.
• Easy assembly.
Specs:
Width: 500mm
Height: 58mm w/o crab gear 258mm with crab gear
Weight: 550g (w/ included Crab hi-lift gear)
Motor Mount Bolt Holes: 16/19mm
hook Rod Rail: 55-60mm center to center 12mm rod (11.75mm)
