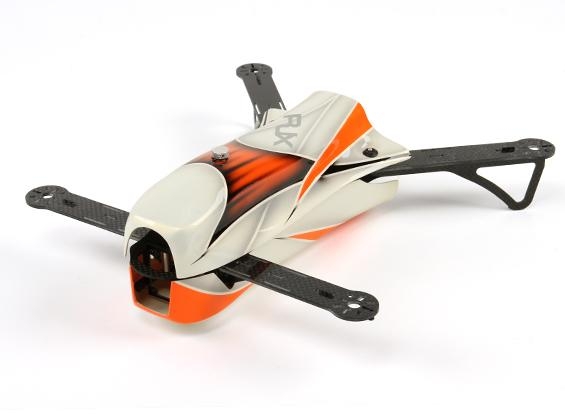

The RJX CAOS 330 FPV racing quadcopter has been designed to compete in the popular 250 class, the 250mm measurement is taken by measuring from motor shaft to motor shaft diagonally. The CAOS 330 has a striking style that ticks all the boxes and is the ideal starting point to building a small yet fully functional FPV quadcopter. The symmetric design allows it to accomodate the use of the popular 5~6" size propellers.
The airframe is super tough carbon fiber with board camera mount and quality aluminum frame posts and has been designed to support a 3~4S lipoly and the powerful 2206-13 2000Kv class motors or similar, but can if you wish accomodate up to a 6S set-up. It features CNC cut 2.3mm thick arms which are both rigid and strong with new motor mounting holes allowing more options for different bolt patterns, easy lipoly access and much more, see list of features below.
The CAOS 330 produces a vibration and jello free platform to give excellent HD video results. This is achieved by a vibration free performance and high quality antivibration mounts. The CAOS 330 is simple and lightweight with a reduced parts count and reduced failure points.
Features:
• New motor mounting holes which offer more options for different bolt patterns
• Thick carbon fiber for the motor mounting plates
• Flight controller cover plate includes cut-outs for SMA connectors and adapters for the video transmitter
• Easy access for the lipoly battery
• Support for 32mm board camera's as well as those with cases and mounting brackets
• Support for HD camera's such as the Mobius
• Stylish fiberglass 2 piece body/canopy set
Specs:
Dimensions: 330mm (measured from motor shaft to motor shaft diagonally)
Height: 20mm (between frames)
Height: 70mm (overall height)
Weight: 170g (airframe only)
Approx AUW: 540g (includes flight electronics, FPV gear and a Mobius HD camera)
Body Color: White/Orange/Silver/Black
Included:
1 x RJX CAOS 330 airframe with board camera mount and hardware set
1 x Fiberglass body/canopy set
4 x Antivibration rubber grommets
Required:
4 x 1806/2206-2000/2200Kv motors or similar
4 x 5x3~6x4.5 propellers
4 x 10~20amp speed controllers (recommend with SimonK firmware)
1 x Flight controller
1 x 1300 3S~4S lipoly battery (will accomodate up to 6S)
1 x FPV set-up
1 x 4ch or greater RC system
1 x Lipoly charger
