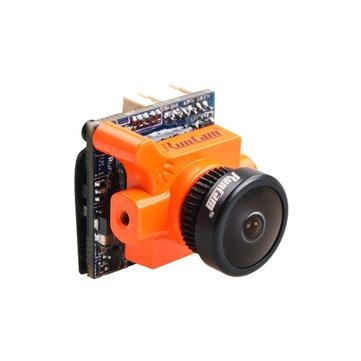

RunCam Micro Swift 2 600TVL 2.1mm FOV 160/145 Degree 1/3 OSD CCD FPV Camera for RC Drone

OscarLiang's review about RunCam Micro Swift 2:Click Here

Micro FPV Camera Comparison - RunCam Swift Micro, Swift Micro v2, Foxeer Arrow Micro v2

Personal


Lightrax


Outdoor


Indoor


Cloudy

CloudyCloudyCloudy
Twiligh









Click here to download the manual: Manual.pdf

Description:
Brand: RunCam
Item name:Micro Swift 2
Color: Orange / Black
Image Sensor:1/3" Super HAD II CCD
Horizontal Resolution:600TVL
Lens :2.1mm(M8)FOV160°
Signal System:PAL / NTSC
Picture scale: 4:3
Integrated OSD:Yes
One Key Scene:Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
S/N Ratio >60dB (AGC OFF)
Electronic Shutter Speed : PAL: 1/50~100,000; NTSC: 1/60~100,000
Auto Gain Control (AGC) : Yes
Min. Illumination:0.01Lux@1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color/Auto/B&W
Power: DC 5-36V
Working Current: 12V@60mA / 5V@130mA
Net Weight: 5.6g
Volume: 19mm*19mm*19mm

Features:
1. RunCam Micro Swift 2 added built-in OSD.
2.One Touch Scene Setting (preset scenes 5)
Personal, Lightrax, Outdoor, Indoor, Cloudy, Twilight.

Package included:
1 x RunCam Micro Swift 2
1 x Aluminum bracket
1 x Set of screws
1 x 6pin FPV sillcone cable
1 x 5D-OSD menu cable
1 x Manual
