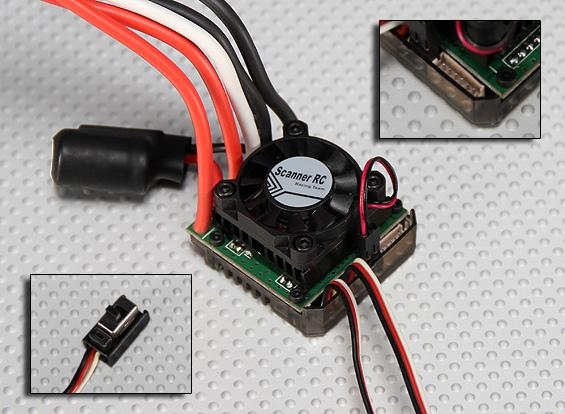

Scanner RC 80A ESC (1/10Scale)

Manufactured in Taiwan from quality components the Scanner RC Competition Racing series of 1/10th Car ESCs offer uncompromising quality that will put you in the winners circle.

Featuring an Atmel IC with a resolution of 1024 DPI these ESCs offer extremely smooth and precise throttle control.

Specification:
Cont. Current: 80A
Burst Current: 96A (10 Seconds)
Car Size: 1/10th
Battery: 2-3 Cell Lipo
BEC: 5V
Motor Type: Sensored Brushless
Size: 35 x 42 x 37mm
Weight: 66g (Including wires, Heatsink and Fan)
Motor Plugs: Required
Battery Plug: Required
On/Off Switch: Yes
Reverse: Yes

Programming Options (Via Optional programming card)
Cut-off Voltage: 2.6v~3.4v
Running Mode: Forward+Brake / Forward & Reverse+Brake
Motor Timing: 2deg~12deg
Startup: Low / Mid / High / Peak High
Brake Force: 20%~100%
Inital Brake Force: 10%~100%
Drag Brake Force: 8%~30%
Switching: 8Khz / 16Khz
Nuetral Range: 2%~6%
