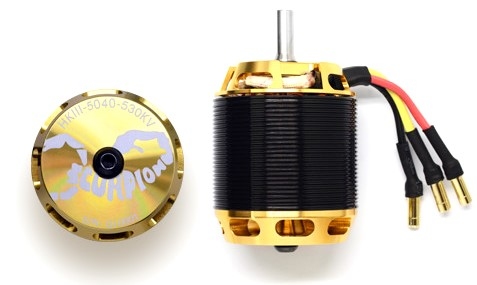

Scorpion HKIII-5040-530kv (8mm) Brushless Motor - 14S Speed

SCORPION HKIII 5040-530KV 14S Speed Brushless Motor

A high performance HKIII series motor for those pilots with a need for speed.

The brand new HKIII-5040-530kv (8mm)

is specifically engineered and built for use in high speed racing applications and is the perfect match for speed machines such as the TDRII.

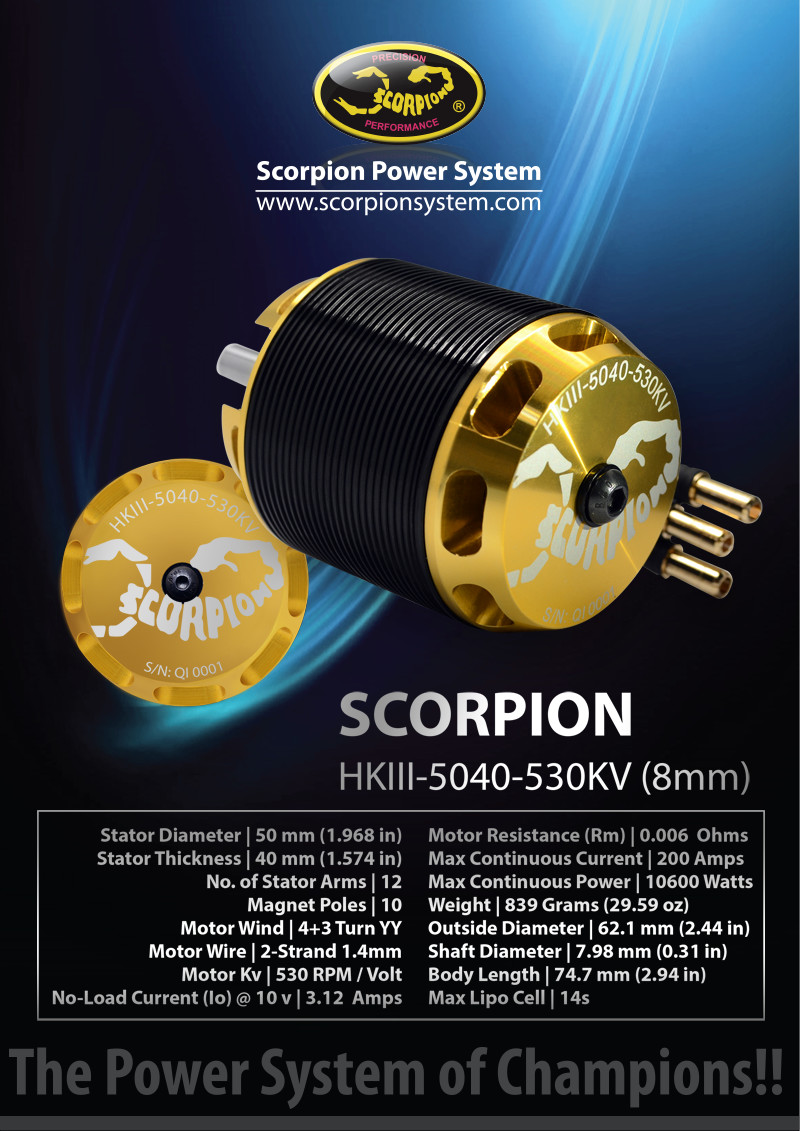

Specifications:
Stator Diameter: 50 mm (1.968 in)
Stator Thickness: 40 mm (1.574 in)
No. of Stator Arms: 12
Magnet Poles: 10
Motor Wind: 4+3 Turn YY
Motor Wire: 2-Strand 1.4mm
Motor Kv: 530 RPM / Volt
No-Load Current (Io) @ 10 v 3.12 Amps
Motor Resistance (Rm): 0.006 Ohms
Max Continuous Current: 200 Amps
Max Continuous Power: 10600 Watts
Weight: 839 Grams (29.59 oz)

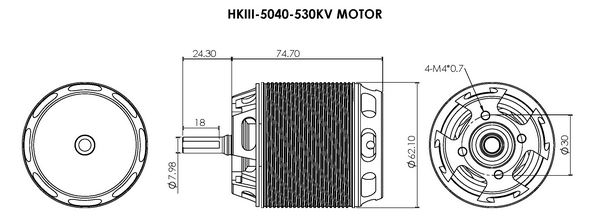

Outside Diameter: 62.1 mm (2.44 in)
Shaft Diameter: 7.98 mm (0.31 in)
Body Length: 74.7 mm (2.94 in)
Overall Shaft Length: 99 mm (3.89 in)
Max Lipo Cell: 14s
Motor Timing: 5deg
Drive Frequency: 8kHz

Weight including packaging
1500g
