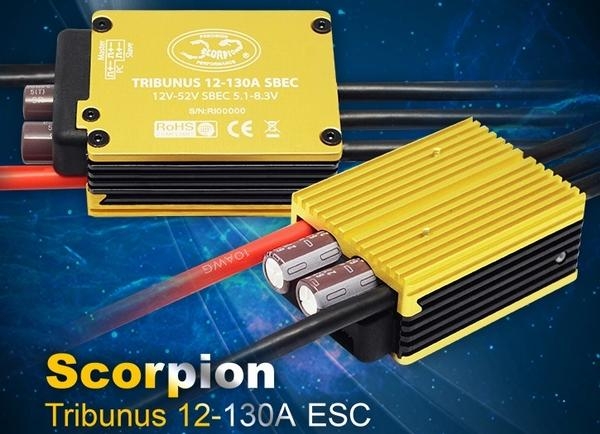

Scorpion TRIBUNUS 12-130A (SBEC) Brushless Regler 4-12S Lipo

Name: Scorpion TRIBUNUS 12-130A (SBEC) Brushless Regler 4-12S Lipo
SKU: SCO-1474
Price: 299.00 EUR
Availability: InStock

Cod. SCO-1474

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 12S total 52V.

Size: 75.3 x 44.3 x 25.7 mm

Weight: 195 Grams.

Mikado Proving Ground Produced by Kyle Dahl

Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy

Scorpion Tribunus 12-130A - User Manual

Scorpion Tribunus Heli Program V1.02

Scorpion V Link II Cable CH340 Driver (For all ESC use)

How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

DIY your spark suppressor system on a ESC

Hot-to update Tribunus firmware

Specifications

Max Continuous Current	130 Amps
Peak Current	200 Amps
Operating Voltage Range	14-52 Volts
BEC Output voltage:	5.1V to 8.3V adjustable.
Max Continuous BEC Output	10 Amps @ 8.3 V
Peak BEC Output	20 Amps/1s @ 8.3 V
On Resistance	0.7 mOhms *2
Size	75.3 x 44.3 x 25.7 mm (2.96 x 1.74 x 1.01 in)
Weight (Without Connectors)	195 g (6.87 oz)
Drive frequency	8kHz - 32kHz
