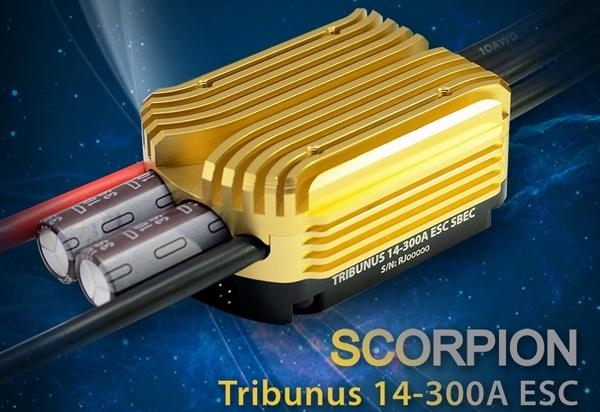

Scorpion TRIBUNUS 14-300A (SBEC) Brushless Regler 4-14S Lipo

Name: Scorpion TRIBUNUS 14-300A (SBEC) Brushless Regler 4-14S Lipo
SKU: SCO-1473
Price: 549.00 EUR
Availability: InStock

Cod. SCO-1473

Product Description

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Supported HvLi battery 14S total 61V **.

Size: 90.2 x 50 x 31.7 mm

Weight: 238 Grams.

**Using up to16s HV Lipo will not void the warranty.

Mikado Proving Ground Produced by Kyle Dahl

Bobby Watts show you how to set up the Tribunus 14-200A ESC and Demonstration flight by Kyle Stacy

Scorpion Tribunus 14-300A - User Manual

Scorpion Tribunus Heli Program V1.02

Scorpion V Link II Cable CH340 Driver (For all ESC use)

How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti

DIY your spark suppressor system on a ESC

Hot-to update Tribunus firmware

Specifications

Max Continuous Current	300 Amps
Peak Current	400Amps
Operating Voltage Range	14-61 Volts **
BEC Output voltage:	5.1V to 8.3V adjustable.
Max Continuous BEC Output	10 Amps @ 8.3 V
Peak BEC Output	30 Amps/1s @ 8.3 V
On Resistance	0.65 mOhms *2
Size	90.2 x 50 x 31.7 mm (3.55 x 1.96 x 1.24 in)
Weight (Without Connectors)	238g (8.39 oz)
Drive frequency	8kHz - 32kHz
