Introduction:
Brushless Gimbal is the next generation technology for high quality aerial photography. Senrigan GP-35 Brushless Gimbal is driven directly with two Brushless Motors for two axis movement roll and tilt without gears or belts. The main advantages of this design compared to traditional actuators (servos) are the Brushless Gimbals have no backlash in the gear or belt, and it provides the instantaneous response to the disturbance. Due to lack of gears/ belts, this new Brushless Gimbal is extrenely easy to install and with low weight which is perfect for aerial activities. The lower the weight, the longer the flying time you can achieve.

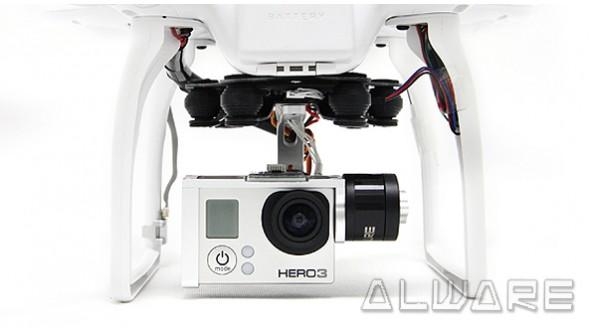

Differ than others, the motors and Gimbal Controller of Senrigan GP-35 Brushless Gimbal have been well test and tuned of the PID parameter for GoPro 3 Cameras in the factory before selling. So no worries about the setting or PID tuning of the Brushless Gimbal. Furthermore, GP-35 is designed to full fit DJI Phantom Quadcopter with only two screws easily. There is no modification needed at all when using with GP-35. So this is suitable for both beginners as well as professionals.
Last but not the least, GP-35 Gimbal comes with an AV Output cable which allows GoPro 3 camera to transmit the video signal down to the ground by using an FPV system(not included). So that you will see what you are exactly recording. At the same time, GP-35 has the newer Brushless Gimbal firmware installed which enable 90 degree tilting. This is very useful for professional aerial filming and FPV flying activities.
Features:
-Direct drive of Brushless Motors for both Roll and Tilt axis.
-Full fit to DJI Phantom Quadcopter without any modification.
-Simple and strong Mechanism Design.
-Made of CNC Metal Parts and Fiber Frames which is super light and strong.
-Super Steady Performance with high quality Rubber Tension Damper Balls.
-High Quality Brushless Gimbal Controller(Pre-programmed) with the most steady performance.
-Well tested and PID parameter tuned by the factory for GoPro 3 camera.
-Included an high quality AV signal output cable for Gopro 3 Camera.
-Controllable Roll and Tilt(Max. 90 degree) Axis Movement.
-Easy to install and use.
-Compact, light and valuable.
Specification:
-Movement: 2-axis, Roll and Tilt
-Controllable axis: Tilt 90 Degree, Roll 60 Degree
-Working Voltage: 3S 11.1V Lipo
-Brushless Gimbal Controller Weight: 16g
-IMU Weight: 1.4g
-Brushless Gimbal Motor Weight: 47.7g /Pcs
-Total Weight with Gopro 3 Camera: 270g
Included:
1x Senrigan GP-35 Brushless Gimbal (Un-assembled)
1x Senrigan Brushless Gimbal Controller(Pre-programmed) with 90 Degree Tilting
1x IMU Unit
6x High Quality Rubber Tension Damper Balls
1x Gopro 3 AV Signal Output Cable
1x Tilt and Roll Controlling Connector
(Please be noted that GoPro, Phantom and Battery are not included.)
