Introduction:

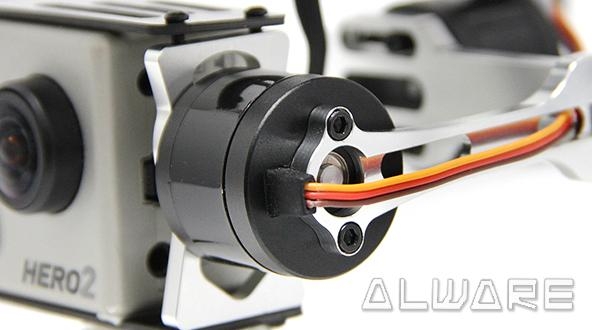

Brushless Gimbal is the next generation technology for high quality aerial photography. Senrigan GP-45 Brushless Gimbal is driven directly with two Brushless Motors for two axis movement roll and tilt without gears or belts. The main advantages of this design compared to traditional actuators (servos) are the Brushless Gimbals have no backlash in the gear/belt, and it provides the instantaneous response to the disturbance. Due to lack of gears/ belts, this new Brushless Gimbal is extrenely easy to install and with low weight which is perfect for aerial activities. The lower the weight, the longer the flying time you can achieve.

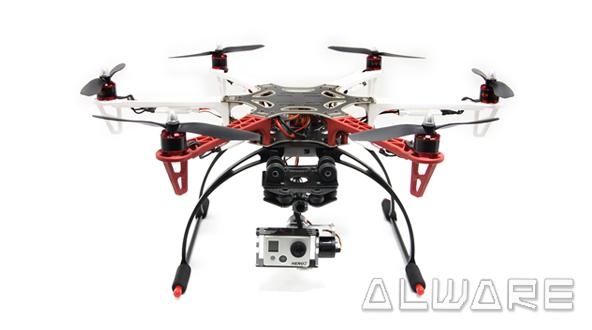

Differ than others, the motors and Gimbal Controller of Senrigan GP-45 Brushless Gimbal have been well test and tuned of the PID parameter for GoPro Cameras in the factory before selling. So no worries about the setting or PID tuning of the Brushless Gimbal. Furthermore, with an Advanced Landing Gear Set you will be able to install the Senrigan GP-45 Brushless Gimbal onto DJIF450/ 550/ other Multicopters effortlessly. Last but not the least, a detailed instruction manual could be downloaded freely in the internet.
Features:
-Direct drive of Brushless Motors for both Roll and Tilt axis.

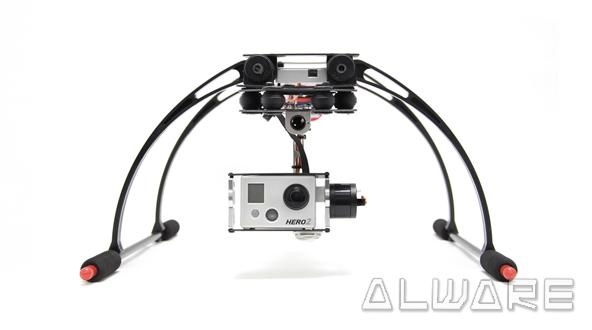

-Advanced Landing Gear Set (with battery mount) which is best fit on F450/550 Multicopters.
-Simple and strong Mechanism Design
-Made of CNC Metal Parts and full Carbon Fiber Frames which is super light and strong.
-Super Steady Performance with high quality Rubber Tension Damper Balls.
-High Quality Brushless Gimbal Controller (Pre-programmed) with High Quality CNC Casing.
-Well test and PID parameter tuned by the factory for GoPro/ Similar size cameras.
-Controllable Tilt Axis Movement with Max. 90 Degree
-Easy to install and use.
-Ligh in weight.
Specification:
-Movement: 2-axis, Roll and Tilt
-Controllable axis: Tilt +-60 Degree, Roll +-80 Degree
-Working Voltage: 3S 11.1V Lipo
-Gimbal Controller Weight (with casing): 47g
-Brushless Gimbal with Controller: 240g
-Total Weight with Landing Gear(without camera): 506g
Included:
1x Senrigan GP-45 Brushless Gimbal
1x Senrigan Brushless Gimbal Controller(Pre-programmed) with High Quality CNC Casing
1x IMU Unit
8x High Quality Rubber Tension Damper Balls
1x Advanced Landing Gear Set with Battery Mount (For DJI F450/550)
1x Tilt and Roll Controlling Connector
(Please be noted that GoPro, Aircraft and Battery are not included.)
http://www.youtube.com/watch?v=M_EBxUIJYLU
http://www.youtube.com/watch?v=LRhvVHtuf_Y&feature=player_embedded
Download Manual V1.1
