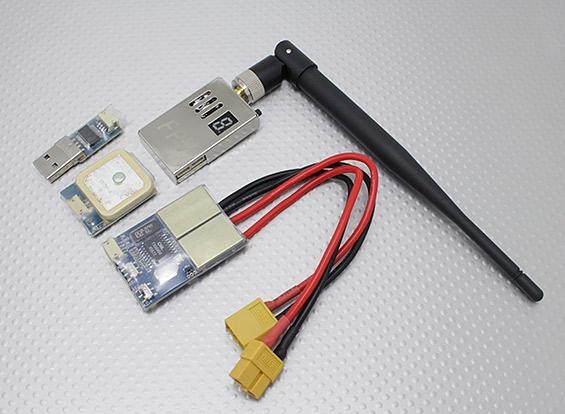

The Skylark All-in-1 OSD has been developed for the FPV enthusiast,it features a multifunctional interface which is very easy to use and is extremely stable. The interface layout is simple and intuitive and can be switched between 3 different display modes, these can be changed in flight via a 3 way Tx switch.
Functions include, numbers of GPS satellites in use, lat/long, distance from home, compass, altitude (using built in barometer), ground speed, return arrow, radar, low voltage alerts,autopilot etc.

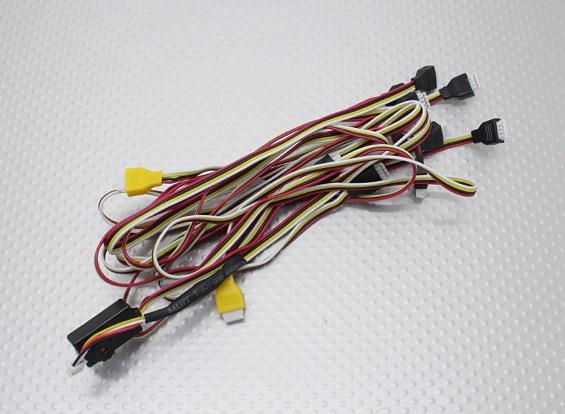

The Skylark OSD has connections for 8ch inputs for the various functions and 4ch outputs for the aileron/elevator/rudder and throttle controls.Couple this superb unit with the Skylark Auto Antenna Tracker and experience some of the best and safest FPV flying ever.
Features:
80amp current sensor
10Hz GPS with backup battery
Onboard 1.2G 1000mW video transmitter
3 display modes, detailed/simple/alarm
Supports Skylark Auto Antenna Tracker
Built in barometer
Plug n play
Autopilot
Easy to use
Free firmware upgrade
Specs:
OSD Board:
Input voltage: 3S-4S battery
Max current: 80A
Output voltage: 5v/12v
Output max current: 2A
GPS:
Frequency: 10Hz
Protocol: NMEA
Warm start: With back up battery
Voltage input: 5v
Video Transmitter:
Channel: 4CH
Frequency: 1.2G
Output power: 1000mW
Working current: 280mA
Voltage input: 12V
Camera:
System: NTSC
Pixels: 656(H) x 492(V)
Resolution: 520TVL
Working current: 75mA
Voltage input: 5V
