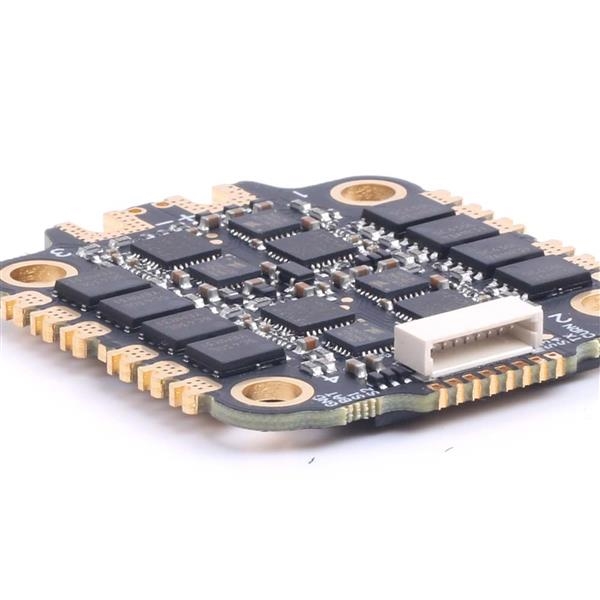

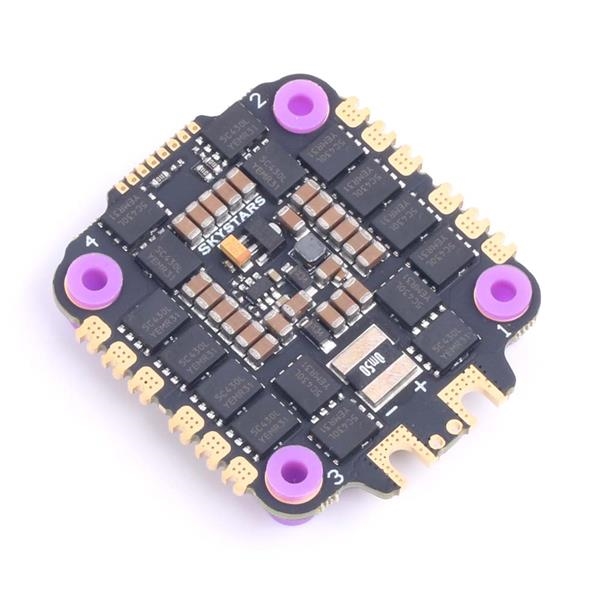

The Skystars RC KO60 60A BLHeli_32 4-In-1 ESC features 60Amp continuous current, support for Dshot 300-1200 / Proshot1000, telemetry (Voltage, Current, etc.) and BLHeli_32 firmware at a fantastic price.
Excellent over-current capability
By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with 6-layer layout design of board, compared with others that commonly use 4 layers, allowing it to withstand higher current.
Extreme stability and support of 6S LiPo battery
By use of 24 pcs of new Toshiba standard 40V 5x6 Mosfet & electronics imported from USA and Japan. Plus advanced lead-free SMT Processing technology. It makes ESC fully support 6s battery and get better performance.
Beter Control Performance
Flashed with the latest BLHeli_32 firmware in factory, support telemetry functions (including voltage ,RPMS, & current )
Specifications:
- Mount: 30.5mm x 30.5mm
- Supports 3-6S
- ESC weight: 12g
- ESC onboard current sensor.
- Continuous current: 60A
- Peak current [5 seconds]: 65A
- Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
- MCU: STM32F051 Operation frequency: 48MHz
- Firmware: BLHeli_32
- BEC: No
Includes:
1x Skystars RC KO60 60A BLHeli_32 4-In-1 30x30 ESC
4x Rubber Grommet
1x XT60 Cable
1x 35v 560uf Capacitor
1x Wire Harness
