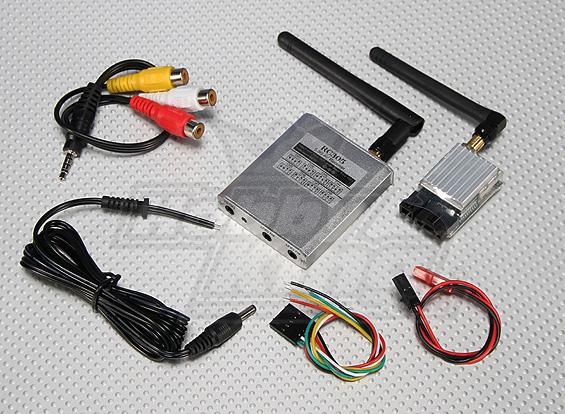

.8Ghz 200mW transmitter. This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 1km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.
Specifications:
Output impedance: 50Ohm
Output power: 21~23dBm
Channels: 8
Transmitter operating voltage: 7~15VDC / 150mA
Receiver operating voltage: 5VDC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 25g
Antenna connector: RP-SMA
Dimensions: 55x26x17mm
Channels
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ
** Many fake, poor quality & untested FPV products are currently entering the market. Don't get caught out with poor quality substitutes, SkyZone FPV equipment is tried and true and has been tested and developed by FPV pilots for FPV pilots.
