Skyzones best has just got better, Skyzone's FPV Goggles are one of the most feature rich FPVgoggles on the market, combine them with a powerful 200mW mini lightweight videotransmitter and a 600TVL CCD camera and your ready for some seat of your pants, cockpit view FPV flying.
Skyzone has designed their goggles from the ground up for FPV use, so no compromises were made. The High resolution widescreen matched with a 30 degree field of view puts you in the cockpit, blend that with the state of the art auto centering head-tracker and you have a true immersion like you have never seen.
Skyzone has matched there beautiful FPV view with reliability and adjustability, from the built in 32 channel dual diversity 5.8GHz receiver too the IPD and Diopter adjustments. The goggles have full A/V in's and out's for DVR's or monitors or heck even watch a movie with them, but with a quick push of a button your view switches to the front built in camera allowing you to perform all kinds of tasks without the need to lift the goggles. The Goggles also feature light tight comfortable eyecups and an earphone jack with volume control.
The quality and features of the new Skyzone FPV Goggle combo set has definitely raised the bar for FPV flying.
Features:
• Built-in 32CH 5.8G Diversity that is compatible with most FPV 5.8G transmitters on the market(Fatshark,DJI,Walkra,Boscam etc)
• Built-in self-calibrating dual axis head tracking (gyro, inertial and compass)
• Built in Dual 854X480(WVGA) Monitors, 1,229,760 color sub-pixels
• Built-in external camera for surrounding view (640X480)
• AV in/ AV out/ Earphone socket (with volume control)
• Adjustable Interpupillary and Diopter for your eyes
• Adjustable brightness and contrast
• Small lightweight powerful 200mW Video Transmitter
• 1/3 Sony CCD 600TVL Camera
Specs for Goggles:
FOV: 30 degrees
Resolution: 854x480 (WVGA) 1230k
Interpupillary (IPD) distance: 60-68mm adjustable, Diopter with optional lenses
Channels: 32CH 4band 5.8GHz (Fatshark, Boscam & Skyzone compatible)
Receiver: Dual ISM 32ch Diversity receiver -90dbm Sensitivity
Video format: NTSC/PAL
Antenna connector: 2x SMA 50ohm
Video in/out: 1.0VP/75ohm
Audio in/out: 1.0VP/10kohm
Front internal camera: 120 degree 640x480
head tracker: Compass/ Inertial and gyro ppm selectable channel output
A/V port: 3.5mm
Ear Out: 3.5mm with volume control
power Supply: dc7-28v / 1A
Power consumption: 4.3w
Video Transmitter Specs:
Frequency: 5.6-5.9GHz
Voltage input:7-24V
Send power:200mW
Work current:190mA/12V
Work temperature:-10-+85?
Video bandwidth:8M
Audio encoder:6.5M
Weight:7.3g
Size:30x20x8mm
Camera Specs:
Sensor: 1/3 Sony CCD
Resolution: 600TVL
Illumination: 0.01lux
Power: 7~13v (3s)
Note: All stock shipped since August 2014 is “V2” stock with the latest firmware.

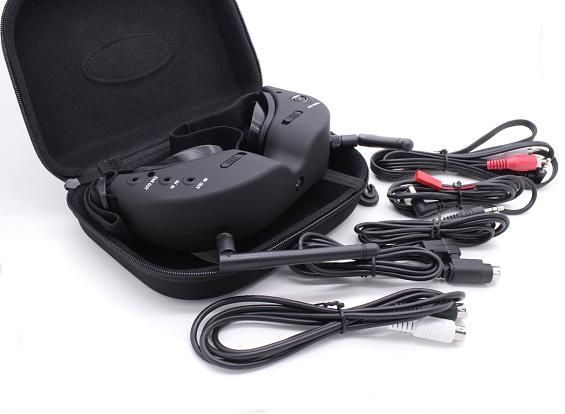

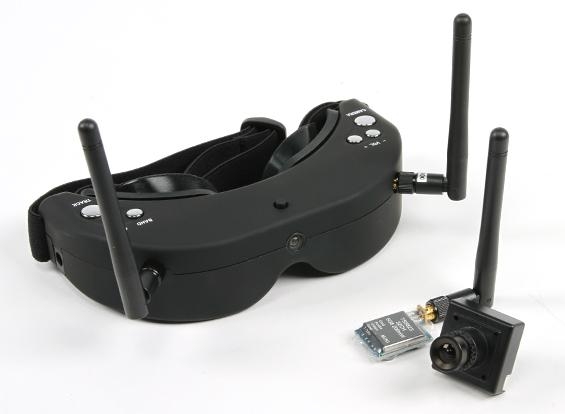

Included:
Skyzone FPV Goggles 5.8GHz Dual Diversity 32CH Receiver With Head-Tracker (V2)

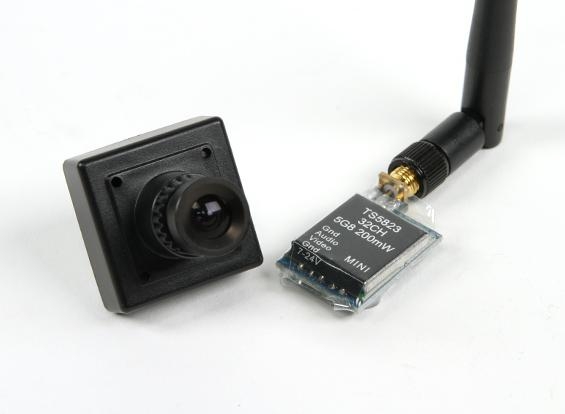

200mW Video Transmitter
600TVL 1/3 Sony CCD Camera
Associated cabling
Frequency Range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
