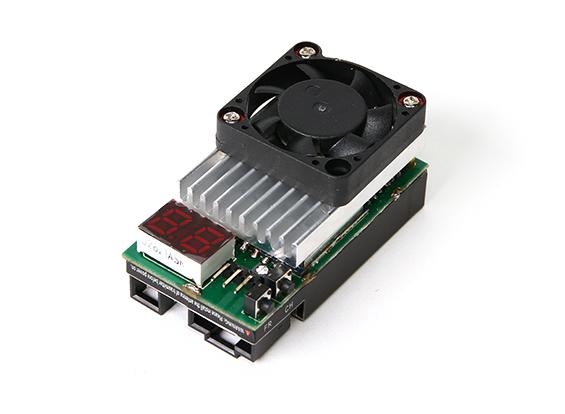

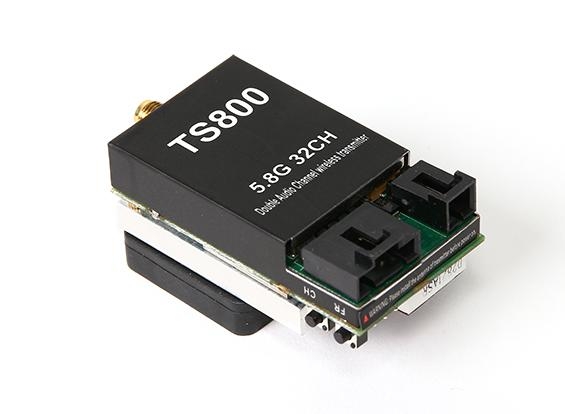

Skyzone FPV 5.8GHz 1500mW 32CH A/V Transmitting (TX) Module TS800 RP-SMA

SkyZone products have forged a reputation for quality and reliability and are tested and developed by FPV pilots for FPV pilots.

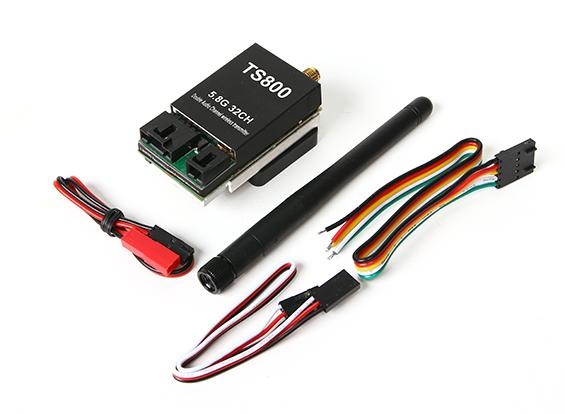

The TS800 Transmitter packs a whopping 1500mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS800 can transmit a full range of 32 channels and features an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 50 grams, it's perfect for any long range aircraft!

The TS800 boasts an impressive new feature, the transmitting band and channel can be changed remotely by the user with a 3 position switch on their radio. This means you can quickly change to a clear band and frequency should you encounter interference on your existing channel.

When combined with the Skyzone RC800 FPV monitor and using ATT switching mode the monitors receiver can be configured to automatically switch frequency at the same time as the TS800 transmitter providing a clean and instant switch from both the TS800 transmitter and RC800 monitors receiver to a new channel simultaneously. (See the user manual of the Skyzone RC800 FPV monitor for more details)

*Note: For best range and video link stability we recommend using the SkyZone 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory's tab

Features:
• 32 channels: Covering A, B, E and F bands
• Two switching buttons for the band and channel
• Two digits display for the band and channel
• Power off memory for last channel and band
• Remote channel switching via spare channel on RC transmitter.

Specs:
Output Power: 1500mW
Frequency Control: Built-in frequency & phase lock loop
AV input: Analog AV signal input
ANT connector: RPSMA Jack
Power Supply: DC 7-28 volts (2s~6s lipoly)
Size: 54x32x65mm
Net weight: 50g (w/o antenna and wire)
CH/Freq. select: Remote or Manual
Channels: 32 (compatible with Skyzone, Boscam, Fatshark and Aomway)

Frequency range:
FR1 5865,5845,5825,5805,5785,5765,5745,5725
FR2 5733,5752,5771,5790,5809,5828,5847,5866
FR3 5707,5685,5665,5645,5885,5905,5925,5945
FR4 5740,5760,5780,5800,5820,5840,5860,5880
