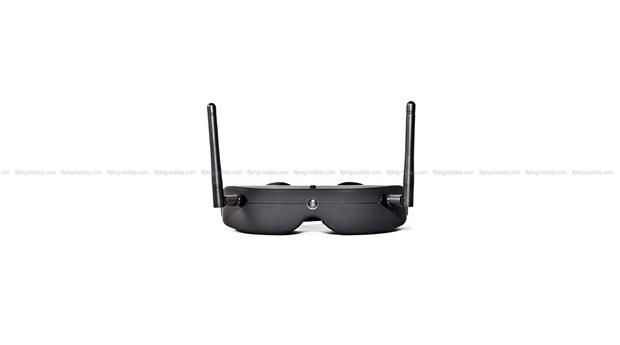

Skyzone FPV Goggles - V2

The FPV Google with Built-in 5.8Ghz Dual Diversity Receiver and Dual Antenna port can receive 2 different channels at the same time and automatically for best reception. It working in diversity mode to achieve good signal utilization and improve the image quality. It supports 4 Bands and total 32channels (Bands selection and Resulting Frequencies see details in Specifications).

• Head Tracker
• Front Camera
• Volume
• Brightness /Contrast Seeting
• AV Input / Output
• Built-in 32CH 5.8G Diversity that is compatible with most FPV 5.8G transmitters on the market
• Built-in self calibrating headtrack which is a very complicated composition of gyro,inerial and compass
• Builti-in Dual 854X480(WVGA) Monitor, 1,229,760 color sub-pixels
• Built-in external camera for surrounding view (640X480)
• AV in/ AV out/ Earphone socket

• FOV: 30 degree
• Resolution : 854 x 480 WVGA, 1229760 color sub-pixels
• Interpupillary distance 60-68mm Adjustable
• Sensitivity : -90dBm
• Antenna Port : 2 X SMA, 50ohm
• Video Standard : NTSC/PAL
• Video Output level : 1.0v p-p Typ/ 75ohm
• Audio Output level : 1.0v p-p Typ/ 10Kohm
• Power : DC 7 - 28V/1A 12V 4.3w
• Dimensions : 168L X 92.5W X 41H mm
• Operation Temp : 0 to 55 degree
