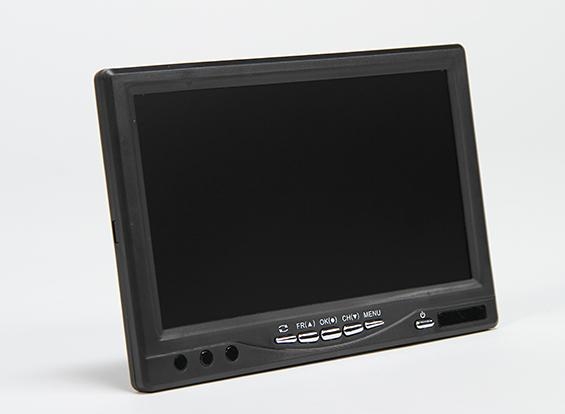

The SkyZone RC800 DVR 7 inch FPV monitor is truly an all in one FPV monitor. The RC800 has a built in high sensitivity 32ch 5.8GHz receiver and integrated DVR to record your epic fpv flying.
The RC800 also has a built in OSD that displays the channel unlike other monitors that are dip switch settable. The built in OSD also displays battery voltage, record time and memory usage, along with other useful information.
SkyZone's RC800 has an integrated AAT port for antenna tracking systems and a data out that allows for synchronized channel switching in flight with your RC transmitter. The built in DVR records to a standard SD card in MP4 format for maximum compatibility in pristine original quality.
The RC800 With one of the brightest non-glare and non-blue screen screens on the market, built in audio, 32channel receiver, DVR, and AAT/data outputs…makes this hands down the best value in FPV monitors.
Features:
• Built in DVR
• Built in 32 channel 5.8GHz high sensitivity receiver
• Loop Record
• Date and time Stamp
• OSD with Memory Info, Format, voltage etc.
• Multi language support: English, Chinese, German, French
• TV PAL/NTSC Standards
• Auto Power Off
• Low voltage warning with Battery Type and cell count support
• 5 levels of LCD Brightness
• Supports 16:9 and 4:3 Screen sizes
• AAT output for antenna tracking systems
• Data out for synchronized RC channel switching
Specifications:
Size: PAL(720×576)?NTSC(720×480)
Formate:MP4, mono audio channel
Storage: SD Card (support 32GB in max)
Wireless receiver:5.8GHz 32CH sensitivity -90dBm
LCD: 7 inch 800x480 HD Screen

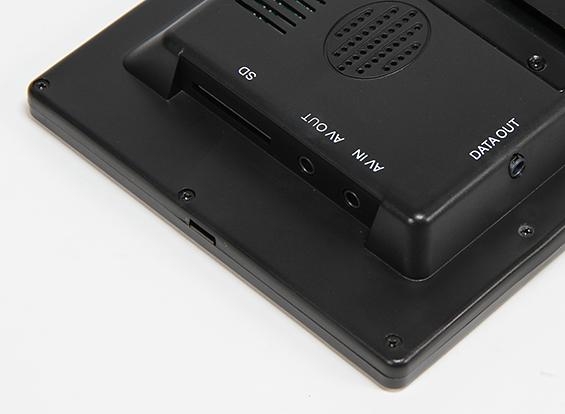

AV output: mono audio channel, video output
AV input: mono audio channel, video input

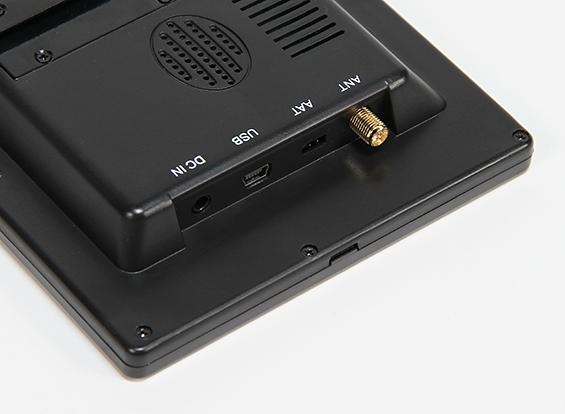

DC IN: 7-28V
AAT: OUT port
ANT: RPSMA
DATA: OUT port
USB: USB2.0

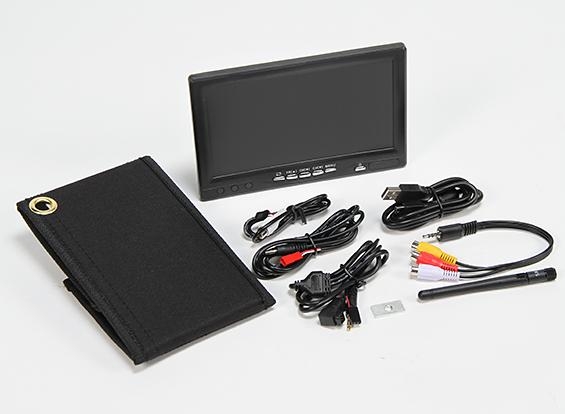

Includes:
7 inch Monitor x1
Light Shield x1
USB Cable x1
AV Cable x1
DC Cable x1
AAT Connection Cable x1
Data Connection Cable x1
