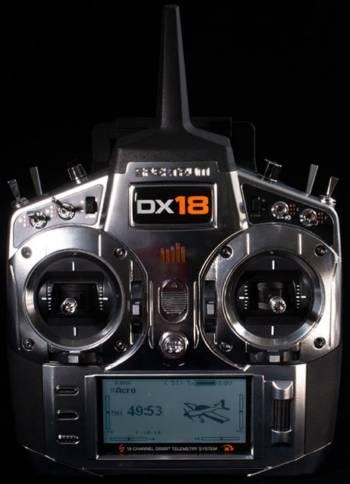

The Spektrum DX18 is capable of transmitting on 18 channels proportionally and will competently fulfill the demanding requirements even of the most challenging aircraft. Supplied with an AR9020 X-Plus capable nine channel receiver, expansion is easily achieved with the addition of and X-Plus expansion module(SPMXP8000). Just plug the module into the AR9020 and bind it. The DX18 will automatically detect the extra channels and give the menu options needed to assign the extra functions. It's just what anyone who flies complex scale models or high-performance sailplanes needs.
Ergonomics

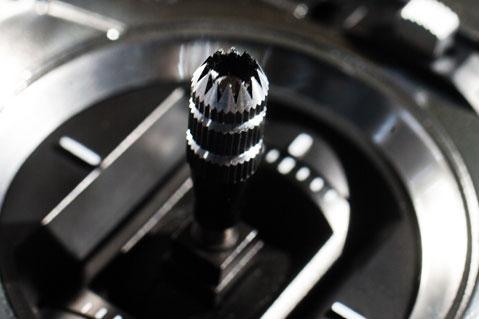

Advanced Ergonomics are the key to a well-balanced radio; one that is comfortable in the pilot's hands with easy to reach sticks and all of the switches and knobs. The large backlit LCD display ensures setting up all of the multiple channels and assigning all of the controls is easy on the eye and Spektrum's AirWare™ software has all of the programming functions a pilot could want. The intuitive SimpleScroll™ interface makes navigating menus and changing settings as simple as "roll and click". It's almost like using a mouse.
Airware™ Updates
It's easy to always be up to date with the latest version of Spektrum AirWare thanks to the Spektrum Community and the Spektrum Data Interface (SDI). Registering the DX18 at community.spektrumrc.com will see users receive alerts whenever a new version of Spektrum AirWare is available. They can then download the new version onto a standard SD card and upload it to the transmitter via the SDI. The SDI can also be used to upload setups for specific models from the Spektrum Community site, share model setups with other DX18 owners or store extra model memory. An SD card is included advantage can be taken of this handy feature right away.
Telemetry

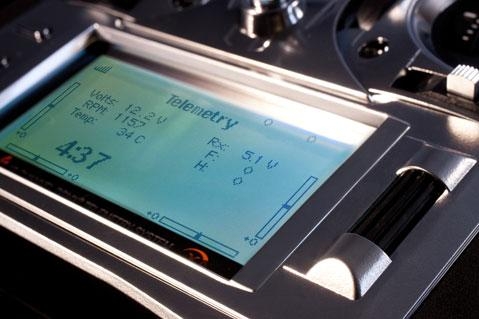

The DX18 is equipped with a built-in telemetry feature that delivers real-time information on things like the model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. And it all appears right on the big LCD screen so can be easily seen at a glance.
Special DX18 Features
New with the Spektrum DX18 is Absolute Servo travel definition that limits the travel to a programmed limited value even if the total values of the mix would create a longer throw.
Ten flight modes are available in glider mode, which covers all required parameters. The innovative Flight mode matrix gives perfect assistance for fast and safe programming.
A programmable time shift in the integrated sequencer of the DX18 activates mix functions. That enables two functions, for example Gear and Gear doors, to one programmable function.
Features
Side rotary knobs
18 Channel with X plus
Spektrum DSMX
Mode 1 -4
Low weight
Twin antennas, one fixed and a second antenna in handle
50 internal Model memory plus nearly unlimited Model memory storage capacity on SD Card
Large backlit 192x96 LCD Display
SD Card
X-Plus Technology
AirWare™ Software with heli, aircraft and glider modules
10 Wing type configurations
6 Swashplate types
2 Motor glider configurations
Free assignable channels
Free assignable switches
LiPo battery and integrated global charger
Up to 10 individually customised flight modes
Individual Flight mode names
Flight mode priority switch
Absolute Servo travel definition
Balance Function with 7 point curve for all servo channels
Sequencer for servo mixes with time shift
Preflight Checklist
Telemetry with Flight log
12 programmable Mixes
Non disp.
