Please be noted that this combo comes without APC props.
Introduction:

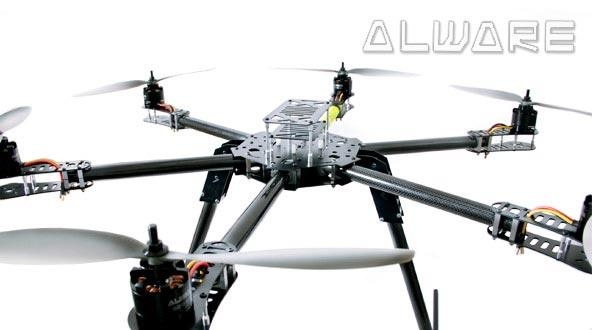

Alware's Streak 800 Hexacopter Series is the next generation aircraft for professional aerial filming with big Cameras, long flying time FPV, search and rescue activities in the air with minimum budget.

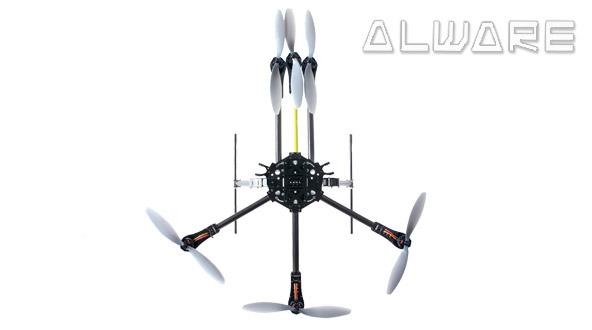

Quick Collapsible Design:
Unlike other huge multicopters, Streak 800Pro has an improved rigit and convenient collapsible structure design. Four arms can be folded together easily with Thumb Screws and Split Lock Washers without using any tools securely. This greatly reduce the effort used in transportation.

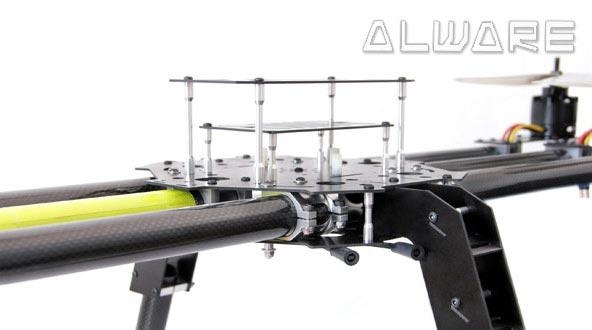

Advanced GPS Antenna and FPV Cam Stand:
Streak 800Pro is the newest design from Alware. It includes an Advanced GPS Antenna and FPV Cam Stand design. This provides a good plateform for you to mount your GPS Antenna and FPV Camera such as GoPro, Mini DV Cam etc. This highly increase the performance for professional aerial filming.
User Friendly Design-Capable With Many Gimbals:
Besides, Streak 800Pro has a user friendly design. It comes with an high strength, large clearance landing gear which is made of carbon fiber booms and CNC metal mounts. It is capable with many other common Gimbals in the current market without any modification. Capable Gimbals including Alware Pro 3 Camera Mount Series, GAUI CRANE 3 and CRANE 2 Gimbals, STO S-903(3-axis) Gimbal, STO Camera Mount Kit S-550 etc. Now you can choose any Gimbal as you like without limitation. Meanwhile, as for professional aerial filming you can use Alware Lensman-18 Camera 3-Axis Gimbal to shoot videos/photos in all directions(landing gear will not block the view of the camera lens on Lensman-18 Gimbal).
Innovatice Motor Mount:
With innovative design of the motor mounts, speed controller could be put next to the motor and far away from the main controller and receiver. This minimizes the interference to the radio signal to give safer and more stable flying. At the same time, putting speed controllers near the motors thus the props, it provides better cooling effect to the controllers. This highly increase the efficiency for flying. Moreover, this benifit design give you the maximum freedom to use any brands of ESC (for 6S Lipo, 40A or above) you like. (Recommended ESC: HobbyWing FlyFun-40A ESC.)
Large Current Power/ESC Board:
Streak 800Pro comes with a large current distribution board. The whole board as a conductor, it support up to 100A input which is a lot more enough for Steak 800. It distributes a power imput to six speed controllers within the board in a clear way. This does not produce magnetic thus less influence to sensors.
High Efficient APC Propellers:
Streak 800Pro comes with 3 pairs of Genuine APC Composite 14x4.7 Propellers. APC Propellers are the most carefully and accurately molded in the USA. The blade shapes are rated as the most efficient and silent manufactured in the aircraft models.
High Performance Brushless Motors:
Motor is the heart of a machine. Alware Brushless Motor 3515-15 KV400 is designed mainly for heavy Multicopters. It has high performance, high efficiency, less vibration and smooth turning. Every motor will be accomplished by an professional dynamic balance process to keep the quality in high standard.
Easy Assembly Steps:
Every Streak 800Pto Kit will be installed(90% complete) by well-trained technicians and checked carefully before shipping. You will need only to put the electronic controllers to the body when you got the Kit. Clear instruction manual could be downloaded easily online.
Specifications:
Kit:
-Diagonal Wheelbase: 830mm
-Carbon Arm Boom Length: 280mm
-Carbon Arm Boom Weight: 23.6g
-Motor Mounting Frame Size: φ13x22-34mm(Shaft x Screw Diagonal Distance)
-System Platform Frame Dimension: 105x66x42mm (LxWxH)
-Bipod Landing Gear Dimension:
188mm(Top Width) x 466mm(Lower Width) x 348mm(Height)
-Landing Skid Pipe: φ10x420mm
-Bipod Landing Gear Weight: 136g
-Total Kit Weight: 1110g (Without Electronics & Props)
-Total Kit Weight With Motors & Props: 2330g
Propeller:
-Manufacturer: APC PROPELLERS in USA
-Size: 14×4.7 Inch
-Root Hole Diameter: 5-6mm
-Center hub thickness: 6mm
-Weight: 25.3g/pcs
Motor:
-Model: Alware Multicopter Brushless Motor 3515-15
-KV value: 400KV
-Stator Diameter: φ35mm
-Stator Length: 15mm
-Propellwe Mount Diameter: 6mm
-Motor Dimension: φ42.5x35mm
-Weight: 178g (with 3.5mm Bullet Connectors and Prop Mount)
-Input voltage: 22.2V 6S LiPo Battery
-Max continuous current: 35A(180sec)
-Max output power: 750W(180sec)
-Internal resistance: 175mOHM
-Recommended ESC: HobbyWing 40A/ 60A
Speed Controller/ ESC:
-Current: 40A or Above
-Voltage: 22.2V 6S LiPo
-Largest Dimension: 30x80x25mm (WxLxH)
-Recommended ESC: HobbyWing 40A ESC(for 22.2V 6S Lipo)
Flying Parameters:
-Max. Takeoff Weight: 7.0Kg
-Max. PayLoad Weight: 2.3Kg (With 12600mAh Lipo-1.7Kg)
-Power Battery: 9000-15000mAh 22.2V 6S LiPo (Minimum 15C)
-Hover Power Consumption: 1300W (Takeoff Weight 6.5Kg)
-Max. Hover Time: 15 min (With 12600 mAh & 6.5Kg Takeoff Weight)
Items Included:
1x Streak 800Pro Hexacopter Kit
1x Advanced GPS Antenna and FPV Cam Stand
1x Bipod Landing Gear System
1x Large Current Power/ESC Board
(Please be noted that this combo comes without APC props.)
Other equipment required to complete the combo:
6x 40A ESC(6S 22.2V)(with 3.5mm Bullet Connector)
2x 6S LiPo Battery 4500-7500mAh
1x Transmitter(6CH or more)
1x Receiver(6CH or more)
1x Hexacopter Controller (WK-M, NAZA etc.)
1x Lipo Battery Charger
6x Alware Multicopter Brushless Motor 3515-15 KV400
3x APC Propeller 14x4.7SF (CCW)
3x APC Propeller 14x4.7SFP (CW)
Download Instruction Manual
