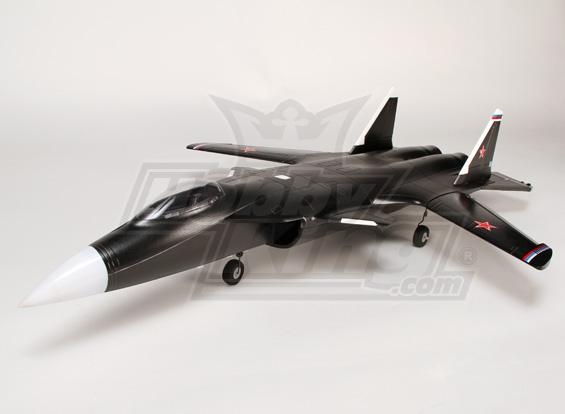

Developed by Sokhoi in Russia as an experimental aircraft to show case their technical advancements in fighter jet design the SU-47 uses a forward-swept wing configuration For high maneuverability and high angles of attack.

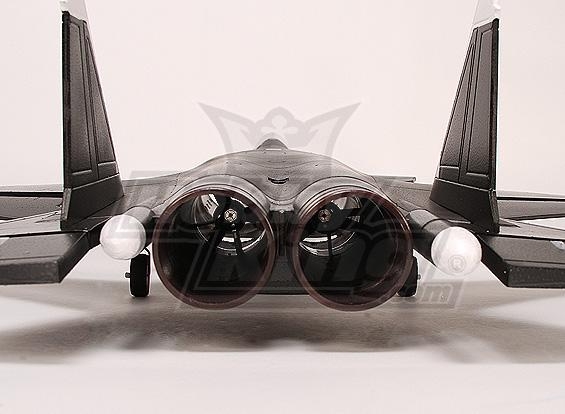

If your looking for an experimental EDF jet then the SU-47 ticks all the right boxes. The forward swept wing design will defiantly stand out from the regular EDF jet crowd. Also featuring twin 55mm 3 blade EDF units, hinged control surfaces and an easy access battery compartment the SU-47 Twin 55mm EDF kit is a step above your regular EDF foamie jet. You will require 2 x 2040-4300kv Brushless inrunner motors with 2.3mm shafts to accommodate the 3 blade fan, 3 x 9g servos (2 for control surfaces and 1 for the steerable nose wheel), a 11.1v 2200mah 3S1P lipo battery and your own transmitter and receiver (Tx/Rx) and an hour or so of build time.
Specs:
Length:1024mm
Wingspan:750mm
Wing Area: 12.7dm2
Flying weight: ~700g
Wing Loading: 55g / dm2
Ducted fan: Twin 55mm 3 Blade Fan units (Included)
Battery: 11.1v 2200mah 20c (Required)
Battery Area: 38mm x 27mm x 105mm (MAX)
Servo: 3 x 9g (Required)
ESC: 2 x 18A (Required)
Required:
Motor: 2 x 2040 4300kv Brushless inrunner (with 2.3mm shaft)
Servo: 3 x 9g
Battery: 11.1v 2200mah 3S1P 20c
ESC: 2 x 18A
Radio: Your own Tx/Rx
