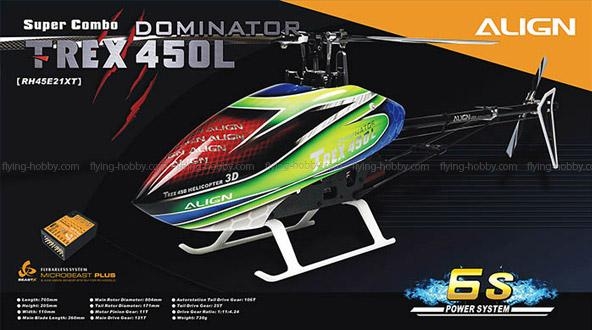

T-REX 450L Dominator Super Combo 6S + 1250mAh Battery

Combo Includes:

• T-REX 450L Dominator Super Combo 6S (RH45E21AW) x1

• 6S1P 22.2V 1250mAh/45C (HBP12501) x1

• Align 3D VR Goggles (HEMVR001) x1

The internationally popular T-Rex 450 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 450 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-Rex 450L Dominator.

T-Rex 450L reverses the common impression people have on T-Rex 450, with material integration technology utilized on side frame design, and has features previously found only on larger models, such as battery mounting rails, top mounted motor, 700E DFC type main bearing block with integrated servo mounts, forming striking resemblances to larger contest grade models. The newly added frame reinforcement plates not only improves helicopter's overall rigidity and anti-torsion characteristics, the beautiful red anodizing also creates highly pleasing aesthetics, further exhibits the T-Rex 450L's attractiveness and exclusiveness. In addition, the T-Rex 450L cleverly expands on the core concepts of T-Rex 450 Pro designs, to carry on the heritage of its mature design of excellence.

Equipped with the DFC flybarless head assembly, paired with newly designed 3D specific 360 3G main rotor blades that are both stable and agile, improving anti-torsion characteristics and power output during flight, resulting in even better flight stability. Based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR. When paired with RCE-BL45X brushless speed controller, the motor has superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree. Brand new DS430M servos controls the swashplate, with feature such as improved torque and speed, along with double bearing support, resulting in minimal deadband and better longevity.

With cutting edge design concepts and top grade electronics, T-Rex 450L Dominator surpasses traditional flight performances with higher stability, extreme power, superior control feel, yet maintains the convenience of smaller size. The T-Rex 450L Dominator is a model not to be missed!

The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.	Equipped with the DFC flybarless head assembly, with extremely low CG design to minimize wind resistance while providing more direct control feel. In addition, the brand new main rotor head block and new spindle design has been incorporated as standard feature. Paired with newly designed 3D specific 360 3G main rotor blades that are both stable and agile, resulting in improved flight performance.
Carbon side frame plates utilized composite material integration technology, featuring integrated battery mounting rails. The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. In addition, the T-Rex 450L cleverly expands on the core concepts of T-Rex 450Pro designs, to carry on the heritage of its mature design of excellence.	Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700E DFC, for simplified servo installation and clean aesthetic. Brand new DS430M servos feature improved torque and speed, with dual bearings design to minimize deadband and provide better longevity.
Based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.	Brand new RCE-BL45X electronic speed controller, capable of 2S-6S lipos, with switching BEC featuring variable voltage adjustment between 5V-6V.
Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability. Classic red anodizing increases overall aesthetics of the helicopter.	Brand new battery mounting plate with battery latching design, along with integrated mounting rails in side frames to simplify battery installs while protecting them.
New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.	Vertical rudder servo mount design for closer CG, increasing the sportiness of 3D flights.
Added tailboom support bridge design to increase the rigidity of the overall tailboom/support assembly.	Using competitive material and special imbedded technology for vertical tail, enhanced its structural strength and boutique texture efficiently, vivacious color providing excellent visibility.
Brand new tail blade grips with thrust bearing design, dramatically increase rudder precision and tail locking effectiveness, while increasing the longevity of bearings. The brand new extended tail rotor blades to match the 360mm main rotor blades also contributes to the tail locking performance. The new style paint scheme provides better visibility in midair.	New style dual point supported tail control assembly for slop free tail, improving on rudder resolution and control precision.

Standard equipment

• Microbeast PLUS Flybarless System X 1 set
• RCE-BL45X 45A Brushless ESC X 1
• 460MX Brushless Motor(1800KV) X 1
• DS430M Digital Servo X 3
• DS525M Digital Servo X 1

Specification

• Length: 705mm
• Height: 205mm
• Width: 110mm
• Main Blade Lenght: 360mm
• Main Rotor Diameter: 804mm
• Tail Rotor Diameter: 171mm
• Motor Drive Gear: 11T
• Main Drive Gear: 121T
• Autorotation Tail Drive Gear: 106T
• Tail Drive Gear: 25T
• Drive Gear Ratio: 1:11:4.24
• Weight(w/o battery): 730g

Accessories

• T-REX 450L DOMINATOR Set X 1 set
• Microbeast PLUS Flybarless System X 1 set
• 360 Carbon Fiber Blades X 1set
• RCE-BL45X 45A Brushless ESC X 1
• 460MX Brushless Motor(1800KV) X 1
• DS416M Digital Servo X 3
• DS525M Digital Servo X 1

Radio transmitter and electronic equipment required for assembly:
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Pitch gauge or Digital Pitch Gauge
4.6S Li-Po 1100~1400mAh battery x 1

Suitable for T-REX 450 6S system with 460MX Brushless Motor(1800KV)(HML46M01).

• Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)
• Max Continuous Discharge: 45C. Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
• This Li-poly battery is using series/balancing design, features high efficient and high discharge, use a inspection machine to match packs, suitable for TREX 450 series(450MX Brushless Motor 1800KV).
• Output:22.2V1250mAh 27.8Wh(6S1P)
• Dimension:105x34x28mm
• Weight:210g

NOTE:
When using high energy Li-poly Battery, please do not over-discharge, over-charge batteries, or result over-high temperature. Discharging capacity can't exceed 80% of the max capacity after full charging to ensure a good cycle performance.Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.4V). Do not use the battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35℃ in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Do not leave the charger is operating unattended as it may cause a fire.

Build up exclusive customizable 3D IMAX theatres by your smartphone

3D VR Headset, high quality, immersive and exciting 3D viewer.

Humanized and comfortable design also compatible with most iOS and Android smartphone system. Lens made from high visible light transmittance of nano-coating technology, and with 92-98 degree viewing angle allow to bring you in exciting and immersive 3D world. Only need to install/download 3D cardboard in your smartphone, and simply insert your smartphone to start enjoying 3D movie or 3D games.

Humanized and comfortable design.	Through built-in Gyro in smartphone. Support 3D head-tracking and 360 degree panoramic views.
Perfect compatible with iphone 6S plus. Compatible with smartphone with 4.0-6.0 inch screen.	Focal distance adjustable.
Compatible with most current glasses.	42 mm hard resin lens, super clear and without distortion.

Specification

• Dimension: 170x120x105mm.
• Weight: 300g.
• Lens: 42 mm aspheric hard resin lens.
• Deformation / Zoom: 1%~2% / 1.5~2 times.
• Cushioning material: High-grade PU + Memory Foam.
• Viewing Angle: 92-98 degree.
• Compatible with smartphone Android/iOS system with 4.0-6.0 inch screen; max. size 6.0 inch (163mm x 83mm).

Smartphone Not Included
