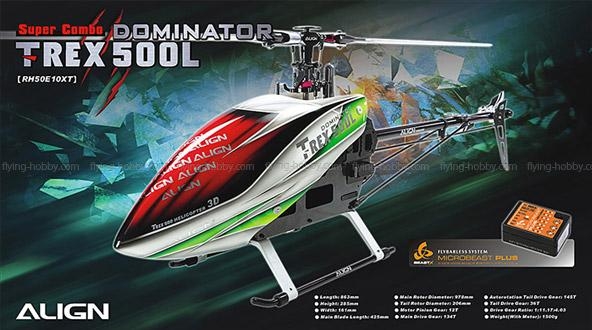

T-REX 500L Dominator Super Combo + 2600mAh Battery

Combo Includes:

• T-REX 500L Dominator Super Combo (RH50E10XW) x1

• 6S1P 22.2V 2600mAh/50C (HBP26004) x1

• Align 3D VR Goggles (HEMVR001) x1

The internationally popular T-REX 500 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 500 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-REX 500L Dominator.

T-REX 500L firstly utilizes composite material integration technology on carbon side frame plates, also adding battery mounting rails and top mounted motor base design make assembly easy and protectable. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; he FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.

T-Rex 500L features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.

The 500FL Flybarless Rotor Head System utilizes extreme low CG design, effectively reduces resistance during 3D maneuvers, increased flight responsiveness and precision. In addition, the styling appearance harmony with red anodized and stainless color, bring out the high quality of helicopter.	Top mounted motor base bringing the motor's center of gravity closer to rotating disc, improving 3D agility. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.
Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.	Carbon side frame plates utilized composite material integration technology, adding battery mounting rails.The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability.
New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.	The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.
High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

Standard equipment

• Microbeast PLUS Flybarless System X 1 set
• RCE-BL70G Brushless ESC X 1
• 500MX Brushless Motor(1600KV) X 1
• DS515M Digital servo X 3
• DS525M Digital servo X 1

Specification

• Length: 863mm
• Height: 285mm
• Main Blade Length: 425mm
• Main Rotor Diameter: 989mm
• Tail Rotor Diameter: 206mm
• Motor Drive Gear:12T
• Main Drive Gear:134T
• Autorotation Tail Drive Gear: 145T
• Tail Drive Gear: 36T
• Drive Gear Ratio: 1:11.17:4.03
• Weight(With Motor): 1210g

Accessories

• T-REX 500L DOMINATOR Set X1
• Microbeast PLUS Flybarless System X1 set
• 425 Carbon Fiber Blades X1
• 500MX Brushless Motor(1600KV) X1
• DS515M Digital servo X3
• DS525M Digital servo X1
• RCE-BL70G Brushless ESC X1

Radio transmitter and electronic equipment required for assembly:

• Transmitter(7-channel or more, helicopter system)
• Receiver(7-channel or more)
• 6S Li-Po 2600 ~ 3300mAh x 1 (3300mAh suggestion)
• Digital Pitch Gauge

Instruction:

• These high discharge lithium polymer batteries are designed to maintain performance in series configuration, and can be charged individually through balancing plug. The extreme high capacity are catered specifically for applications requiring longest flight duration, Suitable for T-REX 500 extreme maneuver flight needed.
• Max Continuous Discharge: 50C. Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
• Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)


Specification:

• Output:22.2V 2600mAh 57Wh (6S1P)
• Dimension:140x43x38mm
• Weight:455g(Not including connectors)
• Max Continuous Discharge:50C
• Using 12AWG wire,thermal resistance:200°C, max continuous current 110A.
• Support 5C charging (Charging error could result in battery explosion, fire, and other unexpected danger or property loss. Please always charge batteries with equipment in sight, do not leave charger unattended. Should you need to leave the charging area, please remove the battery and abort charging process.)

NOTE:
When using high energy Li-poly Battery, please do not over-discharge,over-charge batteries, or result over-high temperature. Discharging capacity can't exceed 80% of the max capacity after full charging to ensure a good cycle performance.Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.4V). Do not use the battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35℃ in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Do not leave the charger is operating unattended as it may cause a fire.

Build up exclusive customizable 3D IMAX theatres by your smartphone

3D VR Headset, high quality, immersive and exciting 3D viewer.

Humanized and comfortable design also compatible with most iOS and Android smartphone system. Lens made from high visible light transmittance of nano-coating technology, and with 92-98 degree viewing angle allow to bring you in exciting and immersive 3D world. Only need to install/download 3D cardboard in your smartphone, and simply insert your smartphone to start enjoying 3D movie or 3D games.

Humanized and comfortable design.	Through built-in Gyro in smartphone. Support 3D head-tracking and 360 degree panoramic views.
Perfect compatible with iphone 6S plus. Compatible with smartphone with 4.0-6.0 inch screen.	Focal distance adjustable.
Compatible with most current glasses.	42 mm hard resin lens, super clear and without distortion.

Specification

• Dimension: 170x120x105mm.
• Weight: 300g.
• Lens: 42 mm aspheric hard resin lens.
• Deformation / Zoom: 1%~2% / 1.5~2 times.
• Cushioning material: High-grade PU + Memory Foam.
• Viewing Angle: 92-98 degree.
• Compatible with smartphone Android/iOS system with 4.0-6.0 inch screen; max. size 6.0 inch (163mm x 83mm).

Smartphone Not Included
