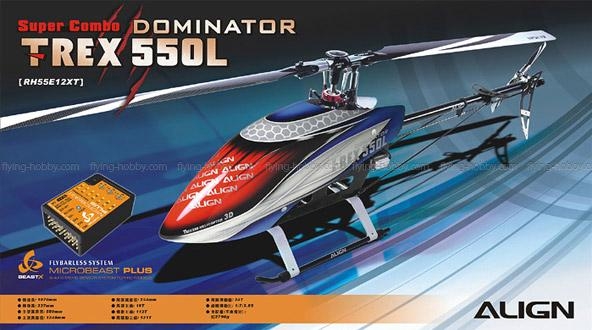

T-REX 550L Dominator Super Combo + 5200mAh Battery

Combo Includes:

• T-REX 550L Dominator Super Combo (RH55E12XW) x1

• 6S1P 22.2V 5200mAh/60C (HBP52004) x1

• Align 3D VR Goggles (HEMVR001) x1

With a size that fall in-between large and small models, T-REX 550 features stability and agility which is the most popular model for pilots in all classes to practice. Now T-REX 550L Dominator inherit with all outstanding design concepts and much superior power supply that will guaranteed jaw dropping performance.

T-REX 550L firstly utilizes composite material integration technology on carbon side frame plates, also adding battery mounting rails and top mounted motor base design make assembly easy and protectable. Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts; plus equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed. High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

T-REX 550L Dominator equipped with 730MX 850KV motor with unique DOMINATOR painting scheme and extremely efficient and powerful output; brand new high voltage brushless BL815H/BL855H servos features with high torque and super efficiency reaction and higher precision; also keep extremely low temperature after flight not only can extend the service life but also be the favorite ones for all our factory pilots.

The most important upgrade should be Microbeast PLUS flybarless system, all the up-to-date devices are all included, must be your best choice to try on, just don't miss it and get a T-REX 550L Dominator right now.

Specification

●Length: 1070mm
●Height: 337mm
●Width: 210mm
●Main Blade Lenght: 550mm
●Main Rotor Diameter: 1248mm
●Tail Rotor Diameter: 254mm
●Motor Drive Gear: 16T
●Main Drive Gear: 112T
●Autorotation Tail Drive Gear: 131T
●Tail Drive Gear: 34T
●Drive Gear Ratio: 1:7:3.85
●Weight(w/o power system): 2790g

Accessories

●T-REX 550L DOMINATOR Kits Set x 1 set
●550 Carbon Fiber Blades x 1 set
●90mm Carbon Fiber Tail Blade x 1 set
●730MX Brushless Motor(850KV) x 1
●BL815H High Voltage Brushless servo x 3
●BL855H High Voltage Brushless servo x 1
●Castle Talon 90 Brushless ESC x 1
●Microbeast PLUS Flybarless System X1 set


Radio transmitter and electronic equipment required for assembly:
1.Transmitter(7-channel or more,helicopter system)
2.Receiver(7-channel or more)
3.Pitch gauge or Digital Pitch Gauge
4.6S Li-Po 2600~5200mAh battery x 1

Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.	Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700L, for simplified servo installation and clean aesthetic.
The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.	New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.
Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.	Carbon side frame plates utilized composite material integration technology, adding battery mounting rails.The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing.
High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.	Utilizes newly designed vertical tail fin, creating a brand new look for T-Rex 550L.

Standard equipment

●Castle Talon 90 Brushless ESC x 1
●730MX Brushless Motor(850KV) x 1
●BL815H High Voltage Brushless servo x 3
●BL855H High Voltage Brushless servo x 1
●Microbeast PLUS Flybarless System x 1

Instruction:

-These high discharge lithium polymer batteries are designed to maintain performance in series configuration, and can be charged individually through balancing plug. The extreme high capacity are catered specifically for applications requiring longest flight duration, Suitable for T-REX 550~T-REX 800 extreme maneuver flight needed.
-Max Continuous Discharge: 60C. Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
-Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)

NOTE:
When using high energy Li-poly Battery, please do not over-discharge,over-charge batteries, or result over-high temperature. Discharging capacity can't exceed 80% of the max capacity after full charging to ensure a good cycle performance.Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.4V). Do not use the battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35 degree in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Do not leave the charger is operating unattended as it may cause a fire.

Specification:

-Output:22.2V 5200mAh 115Wh (6S1P)
-Dimension:138x61x42mm
-Weight:780g(Not including connectors)
-Max Continuous Discharge:60C
-Using 10AWG wire,thermal resistance:200°C, max continuous current 140A.
-Support 5C charging (Charging error could result in battery explosion, fire, and other unexpected danger or property loss. Please always charge batteries with equipment in sight, do not leave charger unattended. Should you need to leave the charging area, please remove the battery and abort charging process.)

Build up exclusive customizable 3D IMAX theatres by your smartphone

3D VR Headset, high quality, immersive and exciting 3D viewer.

Humanized and comfortable design also compatible with most iOS and Android smartphone system. Lens made from high visible light transmittance of nano-coating technology, and with 92-98 degree viewing angle allow to bring you in exciting and immersive 3D world. Only need to install/download 3D cardboard in your smartphone, and simply insert your smartphone to start enjoying 3D movie or 3D games.

Humanized and comfortable design.	Through built-in Gyro in smartphone. Support 3D head-tracking and 360 degree panoramic views.
Perfect compatible with iphone 6S plus. Compatible with smartphone with 4.0-6.0 inch screen.	Focal distance adjustable.
Compatible with most current glasses.	42 mm hard resin lens, super clear and without distortion.

Specification

• Dimension: 170x120x105mm.
• Weight: 300g.
• Lens: 42 mm aspheric hard resin lens.
• Deformation / Zoom: 1%~2% / 1.5~2 times.
• Cushioning material: High-grade PU + Memory Foam.
• Viewing Angle: 92-98 degree.
• Compatible with smartphone Android/iOS system with 4.0-6.0 inch screen; max. size 6.0 inch (163mm x 83mm).

Smartphone Not Included
