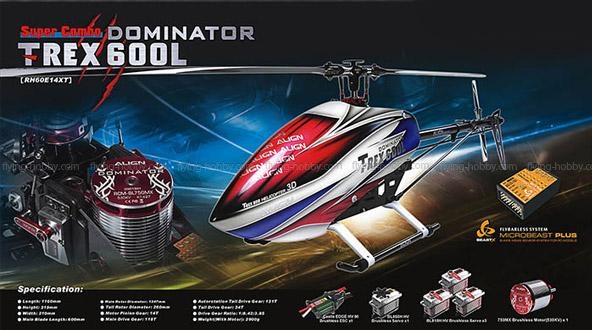

T-REX 600L Dominator Super Combo + 3300mAh Battery x2

Combo includes:

• T-REX 600L Dominator Super Combo (RH60E14XW) x1

• 6S1P 22.2V 3300mAh/50C (HBP33003) x2

• Align 3D VR Goggles (HEMVR001) x1

Powered by 750MX/530KV motor engraved with DOMINATOR insignia, providing extraordinary power output. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

Align's T-Rex 600L Dominator, incorporates all the top grade upgrades, and the Microbeast PLUS flybarless system, with stability and power exceeding all past expectations. The superior control feel, and attractive look, the T-Rex 600L Dominator is the top choice for any enthusiasts!

The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.	Equipped with the low CG DFC rotor head, effectively reduce wind resistance during flight, providing the most direct and precise control feel back to the pilot, and exhibits exhilarating 3D performance and unimaginable flight speed. The brand new spindle shaft design features with oversized M5x10mm spindle screws to increase the rigidity of the overall rotor head.
Brand new 600E PRO Performance Booster designed specifically to bump up the power output of T-Rex 600E PRO by 30% by upgrading the motor from 600MX motor (3300w/5500w) to 750MX/530KV motor (4400w/7260w). The feel as if a turbo charger was added to the helicopter, with dramatic increase of motor torque output, and near bulletproof governing speed of the rotor, while maintaining power consistency throughout the entire flight duration.	Top mounted motor base and imbedded servo mounts. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.
New lightweight H-cross section for electronic equipments.	Sliding battery tray rails imbedded into 3K Side frame.
Equipped with new high strength CNC M1/118T helical main gear and tail drive bevel gear assembly, featuring reinforced overall gear structure and increased gear thickness, effectively improves gear's anti torsion ability to prevent gear from deforming under extreme power, reducing gear wear and power loss.	CNC machined aluminum pieces including servo mount.
New tail control assembly with dual mounting points, effectively eliminate slop and improve control precision and feel. Utilizes newly developed, highest spec and superior anti-wear material to increase the overall strength and durability for torque tube drive gear. Effectively minimize gear striping and crash damage.

Standard equipment

Microbeast PLUS Flybarless System X 1 set
Castle EDGE HV 80 Brushless ESC x 1
750MX Brushless Motor(530KV) x 1
BL815H High Voltage Brushless Servo x 3
BL855H High Voltage Brushless Servo x 1

Specification

• Length: 1160mm
• Height: 319mm
• Width: 210mm
• Main Blade Length: 600mm
• Main Rotor Diameter: 1347mm
• Tail Rotor Diameter: 260mm
• Motor Drive Gear:14T
• Main Drive Gear:118T
• Autorotation Tail Drive Gear: 131T
• Tail Drive Gear: 34T
• Drive Gear Ratio: 1:8.42:3.85
• Weight(With Motor): 2900g

Accessories

• T-REX 600L DOMINATOR Set x 1set
• 600 Carbon Fiber Blades x 1set
• 95 Carbon Fiber Tail Blade x 1set
• 750MX Brushless Motor(530KV) x 1
• BL815H High Voltage Brushless Servo x 3
• BL855H High Voltage Brushless Servo x 1
• Castle EDGE HV 80 Brushless ESC x 1
• Microbeast PLUS Flybarless System x 1set

Radio transmitter and electronic equipment required for assembly:

• Transmitter(7-channel or more, helicopter system)
• Receiver(7-channel or more)
• 6S Li-Po 2600 ~ 4600mAh x 2 (3300mAh suggestion)
• Digital Pitch Gauge/Dial Pitch Gauge

Instruction:

• These high discharge lithium polymer batteries are designed to maintain performance in series configuration, and can be charged individually through balancing plug. The extreme high capacity are catered specifically for applications requiring longest flight duration, Suitable for T-REX 500~T-REX 600 extreme maneuver flight needed.
• Max Continuous Discharge: 50C. Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
• Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)

NOTE:
When using high energy Li-poly Battery, please do not over-discharge,over-charge batteries, or result over-high temperature. Discharging capacity can't exceed 80% of the max capacity after full charging to ensure a good cycle performance.Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.4V). Do not use the battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35℃ in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Do not leave the charger is operating unattended as it may cause a fire.

Specification:

• Output:22.2V 3300mAh 73Wh (6S1P)
• Dimension:140x43x45.5mm
• Weight:510g(Not including connectors)
• Max Continuous Discharge:50C
• Using 12AWG wire,thermal resistance:200°C, max continuous current 110A.
• Support 5C charging (Charging error could result in battery explosion, fire, and other unexpected danger or property loss. Please always charge batteries with equipment in sight, do not leave charger unattended. Should you need to leave the charging area, please remove the battery and abort charging process.)

Build up exclusive customizable 3D IMAX theatres by your smartphone

3D VR Headset, high quality, immersive and exciting 3D viewer.

Humanized and comfortable design also compatible with most iOS and Android smartphone system. Lens made from high visible light transmittance of nano-coating technology, and with 92-98 degree viewing angle allow to bring you in exciting and immersive 3D world. Only need to install/download 3D cardboard in your smartphone, and simply insert your smartphone to start enjoying 3D movie or 3D games.

Humanized and comfortable design.	Through built-in Gyro in smartphone. Support 3D head-tracking and 360 degree panoramic views.
Perfect compatible with iphone 6S plus. Compatible with smartphone with 4.0-6.0 inch screen.	Focal distance adjustable.
Compatible with most current glasses.	42 mm hard resin lens, super clear and without distortion.

Specification

• Dimension: 170x120x105mm.
• Weight: 300g.
• Lens: 42 mm aspheric hard resin lens.
• Deformation / Zoom: 1%~2% / 1.5~2 times.
• Cushioning material: High-grade PU + Memory Foam.
• Viewing Angle: 92-98 degree.
• Compatible with smartphone Android/iOS system with 4.0-6.0 inch screen; max. size 6.0 inch (163mm x 83mm).

Smartphone Not Included
