T-REX 700L Dominator TOP Super Combo + 5200mAh Battery x2

Combo Includes:

• T-REX 700L Dominator TOP Super Combo (RH70E14XW) x1

• 6S1P 22.2V 5200mAh/60C (HBP52004) x2

• Align 3D VR Goggles (HEMVR001) x1

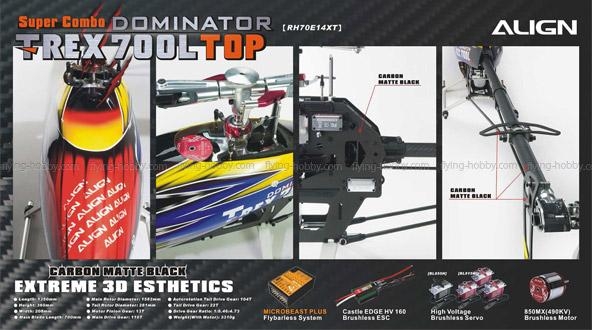

Introducing the highly anticipated, most innovative, brand new T-REX 700L Dominator TOP!

With fully mighty power energy of the 850MX(490KV) motor paired with Castle Edge HV 160 speed controller for unparalleled power output. The brand new high voltage brushless BL815H/BL855H servos also included featuring with high torque and super efficiency reaction and higher precision; also keep extremely low temperature after flight not only can extend the service life but also be the favorite ones for all our factory pilots. Newly outstanding material and superior design concept are all in one, the elaborate matt black carbon fiber structure, stunning red DFC rotor head set, anti-rotation bracket, and torque tube drive gear set and so on, dramatically enhance model strength and esthetics all at once.

Align's 2014 flagship T-Rex 700L TOP Dominator, incorporates all the top grade upgrades, and the Microbeast PLUS flybarless system, with stability and power exceeding all past expectations. The superior control feel, and attractive look, the T-Rex 700L TOP Dominator is the best choice for any enthusiasts!

Standard equipment

• Castle EDGE HV 160 Brushless ESC x 1
• 850MX Brushless Motor(490KV) x 1
• BL815H High Voltage Brushless Servo x 3
• BL855H High Voltage Brushless Servo x 1
• Microbeast PLUS Flybarless System x 1

Specification

• Length: 1350mm
• Height: 360mm
• Width: 208mm
• Main Blade Length: 700mm
• Main Rotor Diameter: 1582mm
• Tail Rotor Diameter: 281mm
• Motor Drive Gear:13T
• Main Drive Gear:110T
• Autorotation Tail Drive Gear: 104T
• Tail Drive Gear: 22T
• Drive Gear Ratio: 1:8.46:4.37
• Weight(With Motor): 3310g

Accessories

• T-REX 700L DOMINATOR Kits Set x 1 set
• 700 Carbon Fiber Blades x 1 set
• 105mm 3K Carbon Fiber Tail Blades x 1 set
• 850MX Brushless Motor(490KV) x 1
• BL815H High Voltage Brushless Servo x 3
• BL855H High Voltage Brushless Servo x 1
• 3K Carbon Fiber Tail Boom x 1
• Aluminum Tail Boom x 1
• Castle EDGE HV 160 Brushless ESC x 1
• Microbeast PLUS Flybarless system x 1set

Radio transmitter and electronic equipment required for assembly:

• Transmitter(7-channel or more, helicopter system)
• Receiver(7-channel or more)
• 6S Li-Po 4500 ~ 5200mAh x 2
• 2S Li-Po 1900 ~ 2300mAh x 1
• Digital Pitch Gauge

The high-end Microbeast PLUS 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.	850MX inherit from the previous 800MXs feature, high efficiency, superior power, excellent torque, low current draw and low temperature. It's capable of maintaining much more consistent torque and head speed through continuous 3D maneuvers, which is particularly special design for 3D flights.
The 700 DFC flybarless rotor head system utilizes extreme low CG design, effectively reduces resistance during flight, increased flight responsiveness and precision.	T-REX 700L TOP with newly elaborate matt black carbon fiber material on main frame and tail boom, bring much more stylish and delightful presentation than others.
Brand new frame reinforcement plates and blocks effectively improves frame's anti-torsion ability. The improvement in frame rigidity and solidness is especially evident during extreme 3D maneuvers.	The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.
Brand new matting carbon tailboom using carbon fiber and aluminum imbedded technology, features light weight and high strength, its unique matting carbon color coupled with whole helicopter, definitely let your helicopter outstanding in the flying field.	Utilizes newly designed vertical tail fin, creating a brand new look for T-Rex 700L.
High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

Instruction:

-These high discharge lithium polymer batteries are designed to maintain performance in series configuration, and can be charged individually through balancing plug. The extreme high capacity are catered specifically for applications requiring longest flight duration, Suitable for T-REX 550~T-REX 800 extreme maneuver flight needed.
-Max Continuous Discharge: 60C. Normal operating temperature is approx. 40-65°C(within 80% of rated discharge). Max. temperature: 80°C.
-Recommend to discharge the battery within 80% of rated discharge, keep 95% capacity when over 100 cycles, keep 90% capacity when over 150 cycles.(The cycle life and efficiency will reduce due to high current, high temperature and over-discharge)

NOTE:
When using high energy Li-poly Battery, please do not over-discharge,over-charge batteries, or result over-high temperature. Discharging capacity can't exceed 80% of the max capacity after full charging to ensure a good cycle performance.Recommend to full charge a brand new battery before using and only discharge the battery 50% for first 5 times to make a good efficiency of the battery. Please make it a habit to always count time for flight, or please set a low voltage protection on ESC (Cell voltage after stopping using can not lower than 3.4V). Do not use the battery at insufficient of voltage.

Do not expose batteries to sunshine or store/ charge batteries at the temperature up to 35 degree in a airtight car. The environment high temperature could cause the damage or the danger of burst. If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.

Do not leave the charger is operating unattended as it may cause a fire.

Specification:

-Output:22.2V 5200mAh 115Wh (6S1P)
-Dimension:138x61x42mm
-Weight:780g(Not including connectors)
-Max Continuous Discharge:60C
-Using 10AWG wire,thermal resistance:200°C, max continuous current 140A.
-Support 5C charging (Charging error could result in battery explosion, fire, and other unexpected danger or property loss. Please always charge batteries with equipment in sight, do not leave charger unattended. Should you need to leave the charging area, please remove the battery and ab

Build up exclusive customizable 3D IMAX theatres by your smartphone

3D VR Headset, high quality, immersive and exciting 3D viewer.

Humanized and comfortable design also compatible with most iOS and Android smartphone system. Lens made from high visible light transmittance of nano-coating technology, and with 92-98 degree viewing angle allow to bring you in exciting and immersive 3D world. Only need to install/download 3D cardboard in your smartphone, and simply insert your smartphone to start enjoying 3D movie or 3D games.

Humanized and comfortable design.	Through built-in Gyro in smartphone. Support 3D head-tracking and 360 degree panoramic views.
Perfect compatible with iphone 6S plus. Compatible with smartphone with 4.0-6.0 inch screen.	Focal distance adjustable.
Compatible with most current glasses.	42 mm hard resin lens, super clear and without distortion.

Specification

• Dimension: 170x120x105mm.
• Weight: 300g.
• Lens: 42 mm aspheric hard resin lens.
• Deformation / Zoom: 1%~2% / 1.5~2 times.
• Cushioning material: High-grade PU + Memory Foam.
• Viewing Angle: 92-98 degree.
• Compatible with smartphone Android/iOS system with 4.0-6.0 inch screen; max. size 6.0 inch (163mm x 83mm).

Smartphone Not Included
