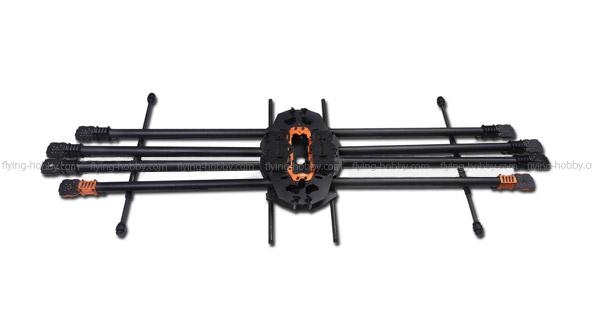

Tarot T15 Foldable Oct-copter Kit

Product Description:

• Designed for portable purpose. Suit for light capacity, long time, and large range job, like RC monitoring, aerial researching, measure sketching, farm developing… etc.
• Applicable to 5DII, RED EPIC, C300, FS700… etc.
• Toray 3K hollow carbon fiber booms applied, CNC processed.
• Light weight, high strength, vibration resistant.
• Battery mount is detachable, prevent crash damage.

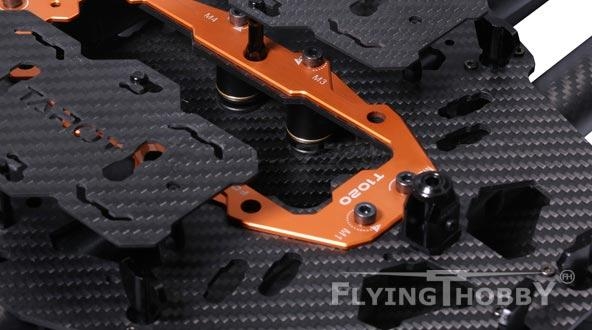

• Light weight motor mount is CNC processed, double color appearance, brings strong visual focus.
• Applicable to diameter 12MM booms and 155MM diameter gimbals.

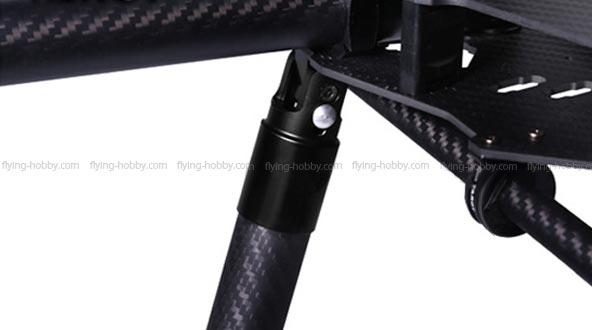

• Applicable to foldable GPS antenna mount, 8 in 1 Aggregator, and multi-copter foldable landing gear.

Specific introduction:

• Boom diameter: 25MM
• Distance between axis diameter: 1020MM
• Kit diameter: 1070MM
• Height: 420CM
• Center plate: 301x209x2.5MM
• Motor mounting pitch:
• 16MM/ 19MM/ 25MM/ 27MM equilateral triangle installation.
• Propeller specification: 15' CF propeller TL2831/TL2813/TL2812
• Brushless Motor: 4114/320KV, TL100B08-02/TL100B08-01
• Battery: 6S 22.2V 10000-15000MHA
• Brushless ESC: 35-40A
• Mounting boom diameter: 12MM
• Weight with full accessories: 8KG
• Kit Weight: 1.95KG

Specification:

• T15/T18 Battery Mount [TL15T01] x2
• T15/T18 Aluminum Bolt [TL15T02] x2
• T15/T18 Metal Reinforcement Plate [TL15T03] x1
• Pure Carbon Boom for T15 [TL15T04] x4
• Pure Carbon Boom for T15 [TL15T05] x4
• T15/T18 Foldable Oct-copter Mount [TL15T06] x2
• Main Plate for Foldable Oct-copter T15/T18 [TL15T07] x1
• Foldable Mount for GPS Antenna [TL15T08] x1
• T810/T960 Foldable Landing Gear Set [TL96013] x1
• Multi-copter Spacing Shim / 4 pieces [TL96021] x4
• T810/T960 Gimbal Hanging Parts [TL96014] x1
• 8 in 1 Aggregator [TL100B14] x1
• Metal Clamping Holder for Multi-copter [TL9605] x8
• 25MM Motor Mount for Multi-copter/ Orange [TL9602] x2
• 25MM Motor Mount for Multi-copter/ Black [TL9603] x6
• Titanium contact file x1
• Water sticker x8
• Color sticker x2
• Velcro sticker x2
• Instruction x1
• Spare screw pack x1
• Color Box x1
