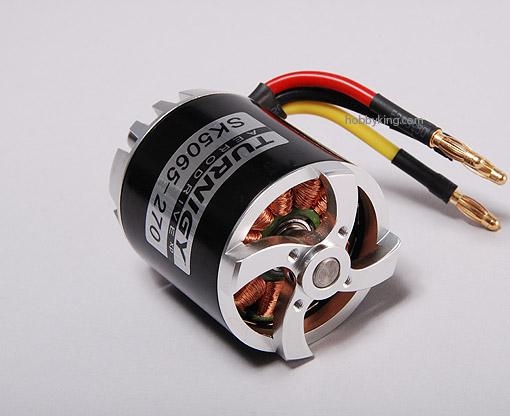

TGY AerodriveXp 90 SK Series 50-65 270Kv / 2100W

AerodriveXP SK Series motors are designed for those who want the very best in outrunner technology for their R/C plane. Typically an efficiency improvement of around 8-10% can be seen over similar classed motors. This is in part due to the following;

Stator Laminations: .2mm
Magnet Type: N45SH
Bearings: Dual oversize (Japanese)

Model: SK50-65 270
Kv: 270rpm/v
Turns: 8
Resistance: 38m-Ohm
Idle Current: 0.7

Shaft: 8mm
Weight: 434g
Rated Power: 2100W
ESC: 80A

Cell count: 6-8S
Suggested Prop: (20~22inch)
Tested props:
20x8@ 32amp on 6S
21X8 @ 43amp on 6S
22X12 @ 66amp on 6S

Power equivalent : Large 60-120 size glow engines. The low Kv and 18x10 prop swinging ability make this a good motor for large 3D up to 5kg
