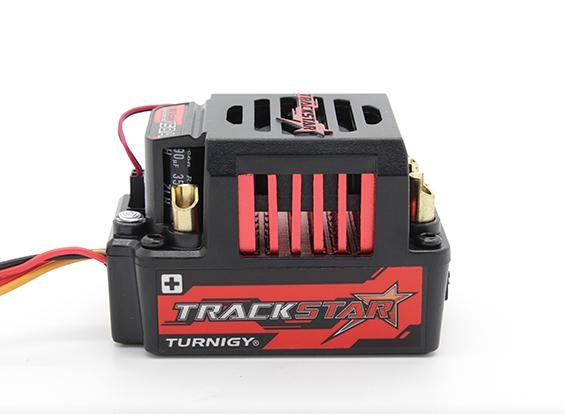

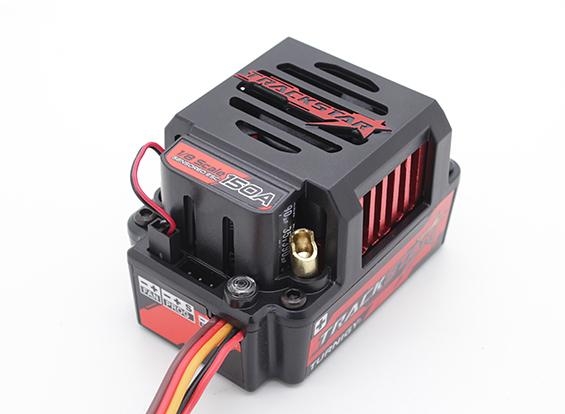

Not all speed controllers are created equal. The TrackStar 150A GenII 1/8th Sensored ESC is an evolution on previous designs and a true thoroughbred in the TrackStar stable. Designed and tested under race conditions the 150A GenII 1/8th ESC is ready to stand up to the high demands of competitive racers. The Trackstar engineers designed the 150A GenII 1/8th ESC with one goal in mind, creating an ESC that would offer performance, reliability and endurance when placed under pressure.
The TrackStar 150A GenII 1/8th Sensored ESC offers a host of programmability options that most racers have come to expect and depend upon. Programming can be done track side with the multi function programming box or via PC with the TrackStar USB Link software.
For a winning combination use the TrackStar 150A GenII 1/8th Sensored ESC with our proven TrackStar 1/8th size “Red Can” motors for a package that leaves the competition in the dust on performance and value!
Features:
• 150A Continuous Current / 950A Burst
• Sensored/Sensorless Operation
• 2~6S LiPo Capable
• 10 Programmable User Preset Profiles
• ESC Overheat Protection
• Motor Overheat Protection
• Programmable Brake and Throttle Curves
• Adjustable Boost and Turbo Timing
• Adjustable Brake and Drag Brake
• PC Programmable
*Note: Above is a list of some of the key programming options. Many more options are available when used with the PC software (TrackStar Multi-Function Smart Program Box required). See user manual located under the "Files" tab below for full details. TrackStar Link PC software also available for download under the "Files" tab.
Specs:
Constant/Burst Current: 150A / 950A
Motor Compatibility: Brushless sensored and sensorless
Car Compatibility: 1/8 on road, off road and 1/8 crawlers
Motor Limits:
2~4S LiPo: KV<3000, 2~6 poles
2~6S LiPo: KV<2400, 2~4 poles
Resistance: 0.0002ohm
Battery Cell Count: 6~18S NiMH or 2~6S LiPo
BEC Output: 6V @ 5A
Dimensions: 58x41x38mm
Weight: 95g (without wires)
