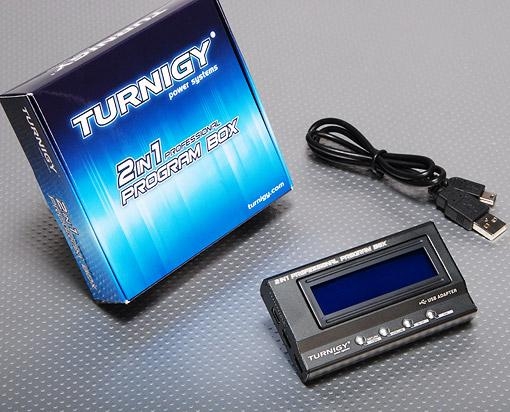

Turnigy 2 in 1 Professional Program Box for Brushless
ESC
This Advanced Program Box is used to set the programmable parameters of brushless ESC, it has a 16*2 characters LCD (Liquid Crystal Display) to get a friendly user interface, so you can set the programmable parameters very easily. It is pocket-sized, so you can bring it to the racing or flying field conveniently.
This program card is suitable for the following ESCs:
EZRUN Series Car ESC (Version 2.0)
K-Force Series Helicopter/Aircraft ESC
Features:
Working as an individual device to set the
ESC, the value of each parameter is displayed on its own LCD screen
Working as an USB adapter to link the
ESC with a PC, and the user can update the firmware of the
ESC or set the
ESC by the special application software on PC.The software includes the speed calculator to measure the speed. The speed calculator only works with K-Force series.
Specifications:
Size:
90mm (L) * 51mm (W) * 17mm (H)
Weight:
84gInput Voltage:
4.8-6V (If the ESC hasn't a built-in BEC, you must use an additional battery pack to supply the program box)
Programmable items (Car ESC): Running mode
Drag brake force
Low voltage cut-off threshold
Start mode
Maximum brake force
Maximum reverse force
Initial brake force
Throttle neutral range
Timing
Over heat protection
Motor rotation
Lipo cells
Programmable items (Aircraft & Helicopter ESC): Brake setting
Battery type
Low voltage protection mode
Low voltage protection threshold
Start mode
Timing
Governor mode
Motor type
PWM frequency
Built in BEC output
Motor load
Lipo cells
Non disp.
