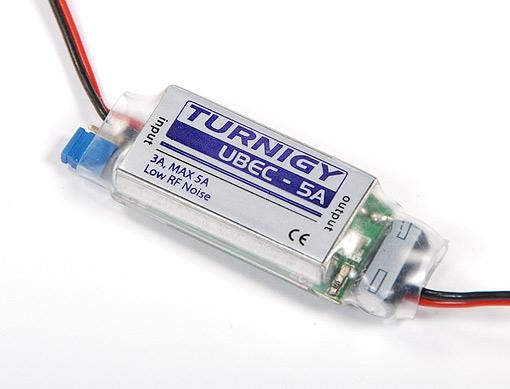

TURNIGY 3A UBEC w/ Noise Reduction

TURNIGY 3A UBEC w/ Noise Reduction

Spec.
Output: 5v/3A or 6v/3A (Selectable via jumper)
Noise: <50mVp-p(@2A/12v)
Input: 5.5v-23v (2-5S Lipo pack, 5-15cells NiMh)
Size: 41.6x16.6x7.0mm
Weight: 7.5g

Features.
Over current and over heat protection.
Switching frequency 300khz.
Chip Efficiency is 92%. This UBEC utilises switching technology to gain a much higher efficiency than liniar BEC. Which means less heat and longer battery life.
The UBEC is equiped with a noise reduction alloy housing to reduce noise even further.
Incorrect polarity safety feature ensures the UBEC will not be destroyed should the battery be connected incorrectly.
