Specification: Operating voltage range: DC 11~15V
Power source: 12V DC (car battery) / AC mains PSU (>200Watts)
Cell count : 1-15 Ni-xx / 1-6 Li-xx / 1-10 Lead acid cells (2~20V)
Current drain for balancing li-xx: 335mA
Charge termination Ni-xx: Automatic, negative Delta Peak method
Charge termination Lead acid & Li-xx: Automatic, voltage dependent, CC-CV process
Maximum Charge Current per port: 6A
High velocity heatsink exhaust fan.
Including;

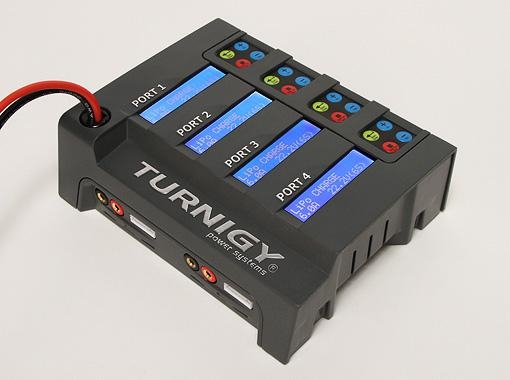

1 x TQ4 charger

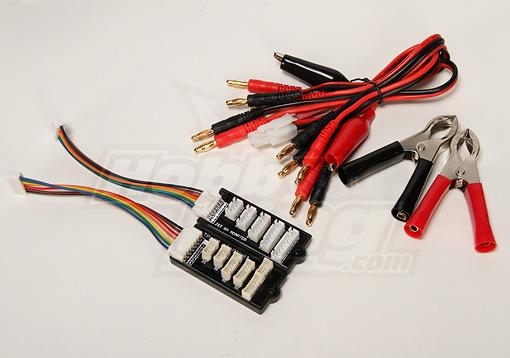

1 x JST XH Adapter
1 x TP/FP Adapter
1 x Banana plug w/ Male Tamiya
1 x Banana plug w/ Female Mini JST
1 x Banana plug w/ Female Futaba
1 x Banana plug w/ Aligator clip
1 x Banana plug w/ Losen wires
1 pair Aligator clip
